Evaporator Temperature Sensor / Switch: Service and Repair

EVAPORATOR TEMPERATURE SENSOR

REMOVAL





1. Remove the center console.

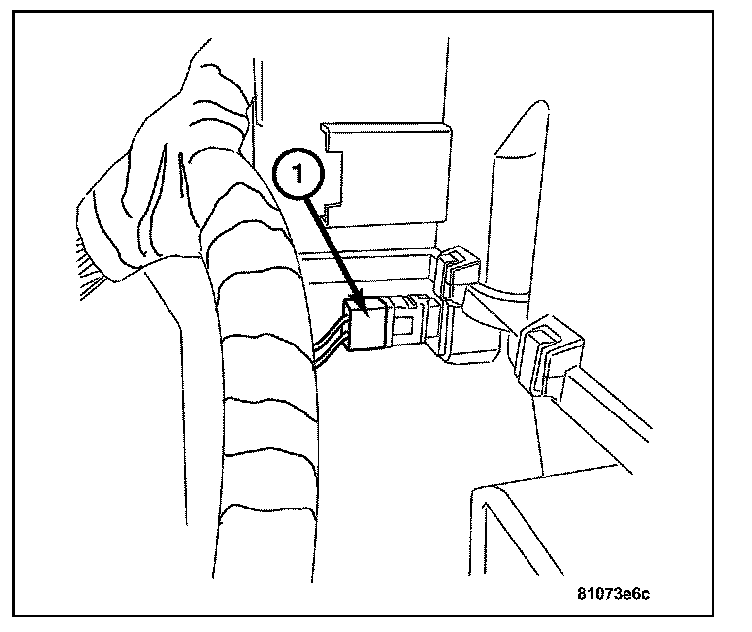

2. Remove the evaporator temperature sensor located on the left side of the heater A/C case.
3. Disconnect the evaporator temperature sensor harness connector from the sensor.

INSTALLATION

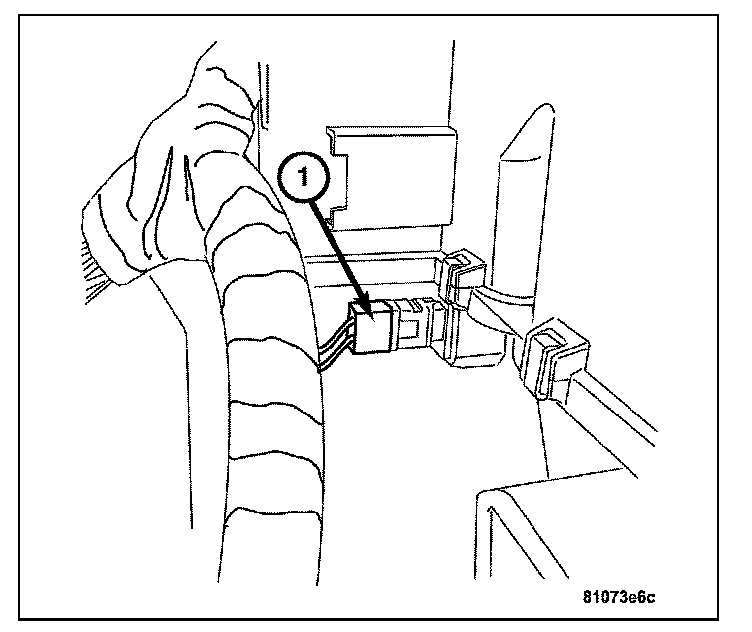

1. Connect the evaporator temperature sensor harness to the evaporator temperature sensor (1).
2. Push the evaporator temperature sensor (1) into the A/C heater case.
3. Install the center console.
