Heater Core Temperature Sensor / Switch: Service and Repair

HEATER CORE TEMPERATURE SENSOR

REMOVAL





1. Remove the center console.

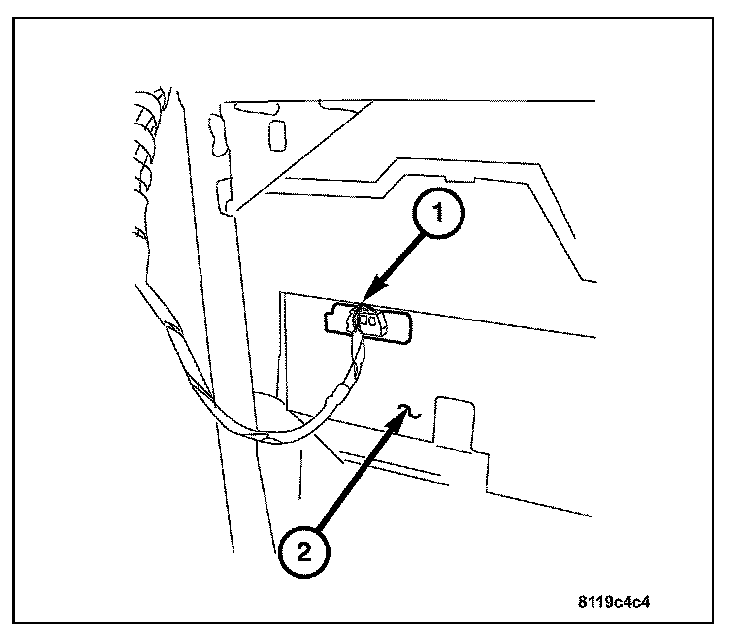

2. Remove the heater core temperature sensor (1) located on the front of the heater A/C case (2).
3. Disconnect the heater core temperature sensor harness connector from the sensor.

INSTALLATION





1. Connect the heater core temperature sensor harness connector to the sensor.

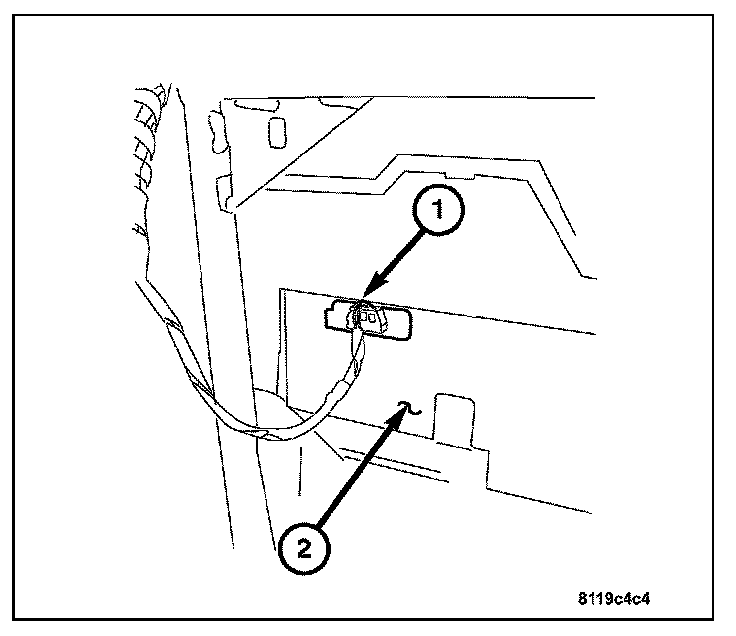

2. Install the heater core temperature sensor (1) to the front of the heater A/C case (2).
3. Install the center console.
