Brake Lamp: Service and Repair

TAIL LAMP UNIT

REMOVAL - TAIL LAMP UNIT





1. Disconnect the negative battery cable.
2. Remove the access panel from the cargo area interior trim panel.

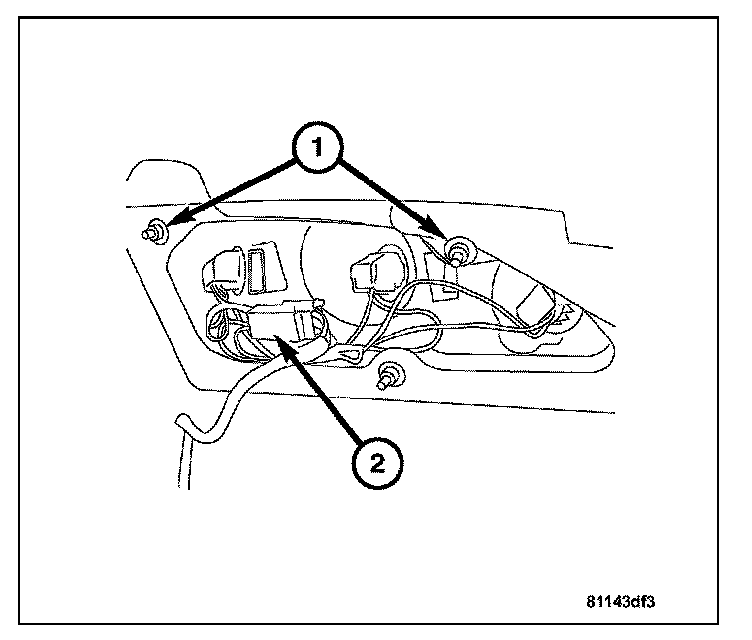

3. Disconnect the tail lamp unit harness connector (2), and remove the retaining nuts (1).

INSTALLATION - TAIL LAMP UNIT

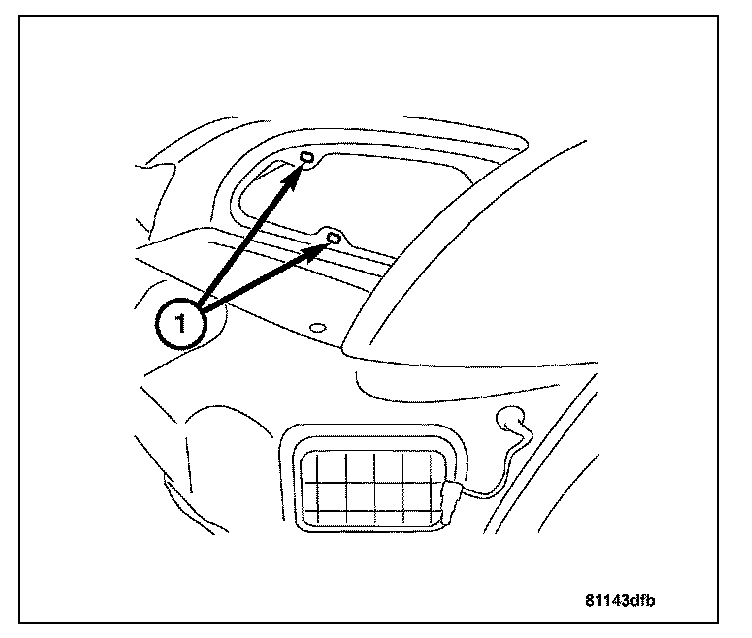

1. Insert the tail lamp unit into the rear body panel (1) and install the retaining nuts. Tighten to 2 Nm (±0,3Nm) (18 in. lbs.).
2. Connect the harness connector and install the access panel into the rear cargo area interior trim panel.
3. Connect the negative battery cable.
