Antenna Control Module: Service and Repair

REAR WINDOW ANTENNA MODULE

REMOVAL




1. Disconnect the negative battery cable.
2. Remove the liftgate interior trim panel.
3. Disconnect the antenna module harness connectors.

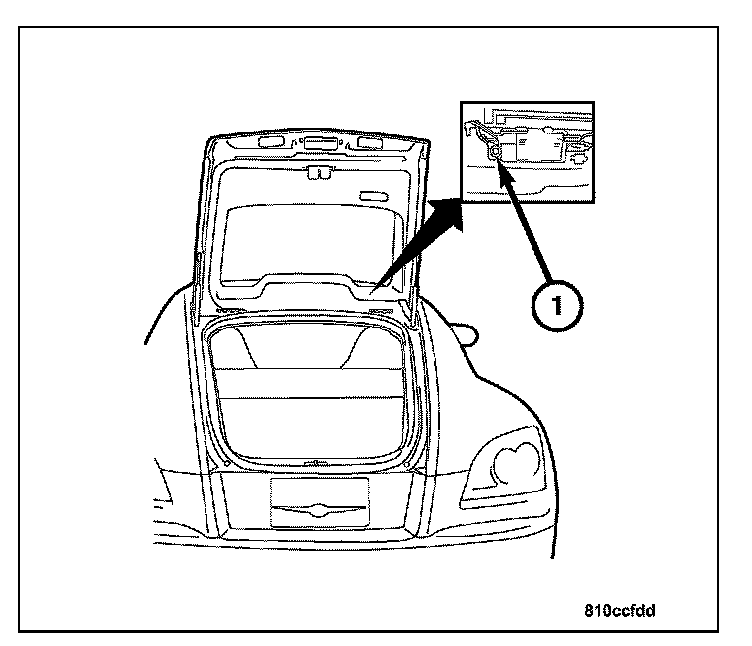

4. Remove the retaining screw (1) and remove the antenna module from the vehicle.

INSTALLATION

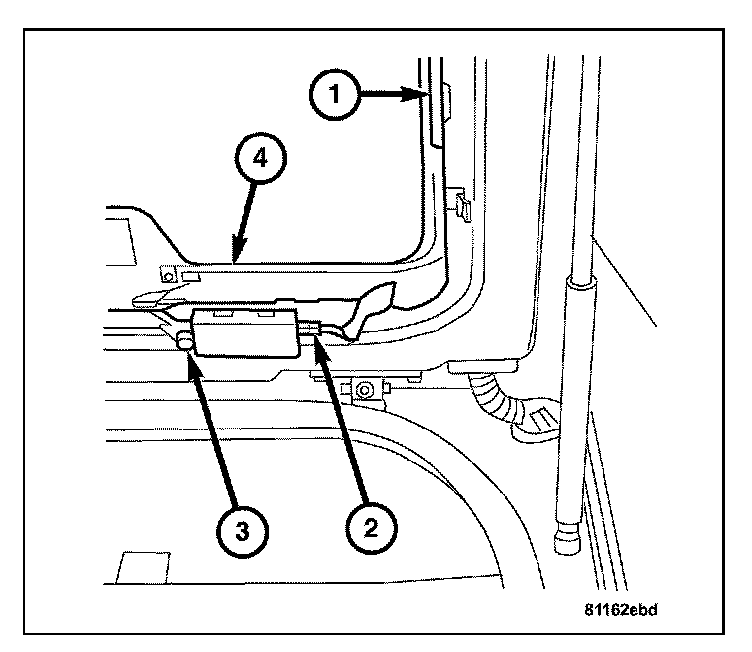

1. Install the rear window antenna module to the lift-gate and attach with the retaining screw (3) and secure.
2. Install the rear window antenna module harness connectors (2).

NOTE: Use care when routing harnesses and allow sufficient clearance near trim panel pinch points.

3. Install the liftgate interior trim panel.
4. Connect the negative battery cable.
