Crankshaft, Engine
CRANKSHAFTMain Bearing Clearance
Radial
0.030-0.052 mm (0.001-0.002 in.)
Axial
0.100-0.266 mm (0.003-0.010 in.)

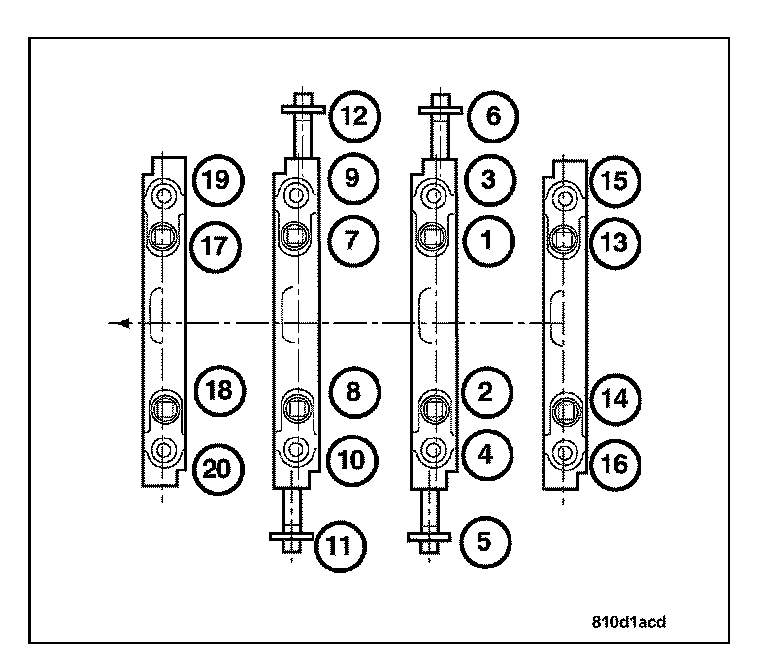

Main Bearing Journal Cap Bolts
Stage One M8
20 Nm (15 ft. lbs. 177 in. lbs.)
Stage Two M8
90� Clockwise
Stage One M10
30 Nm (22 ft. lbs. 266 in lbs.)
Stage Two M10
90� Clockwise
