Battery Tray: Service and Repair
TRAYREMOVAL 1.
Remove the battery.
2.

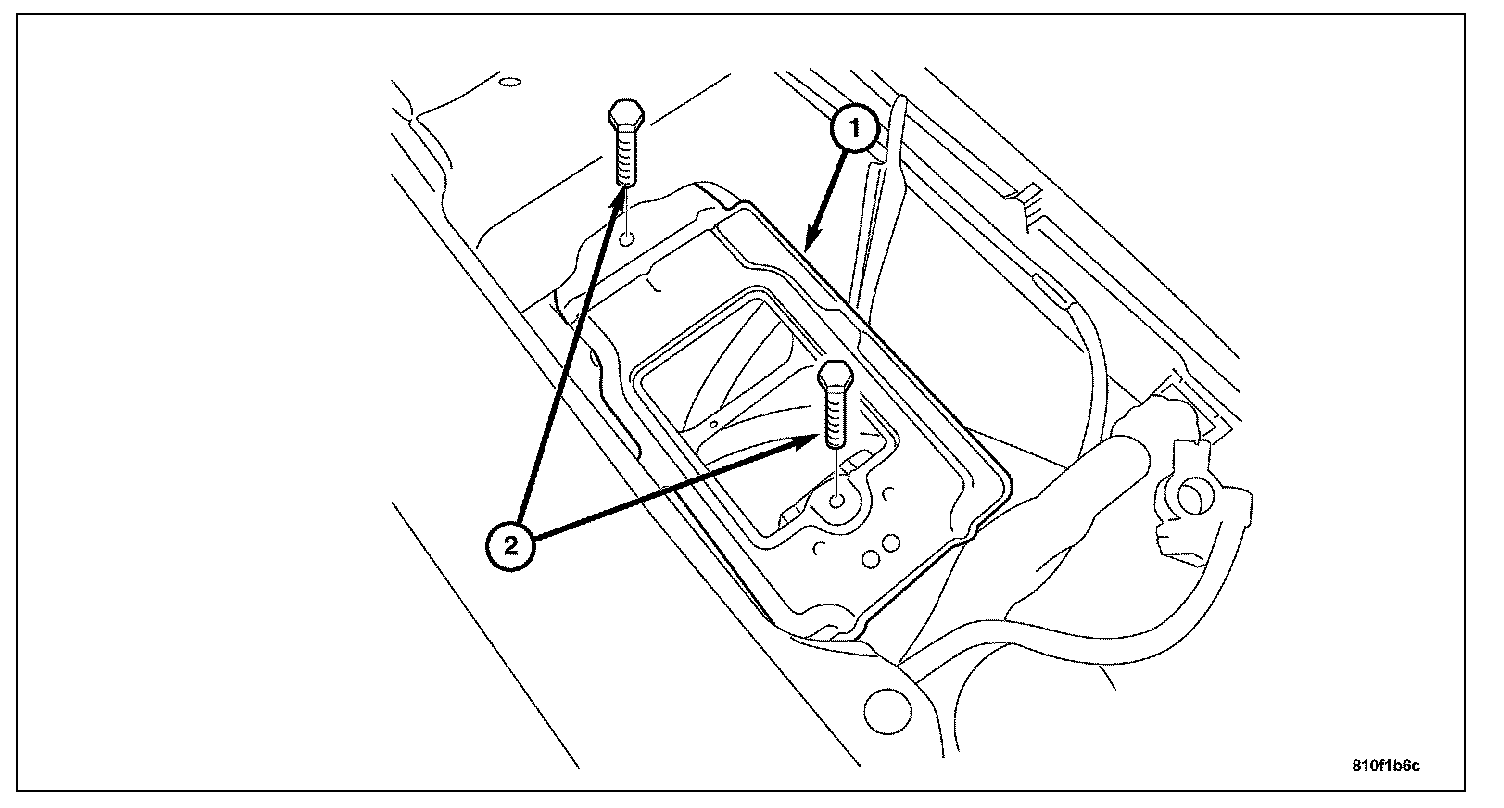

Remove the
battery tray (1) retaining bolts (2).
3.
Remove the
battery tray (1).
INSTALLATION 1.
Install the
battery tray (1).
2.
Install the
battery tray (1) retaining bolts (2). Tighten the bolts to
15 N.m (11 ft. lbs.).
3.
Install the battery.
