Service Procedure

1. Disconnect the negative battery cable.

2. Disconnect the radiator fan harness electrical connector.

3. Remove the upper coolant hose from the holding bracket.

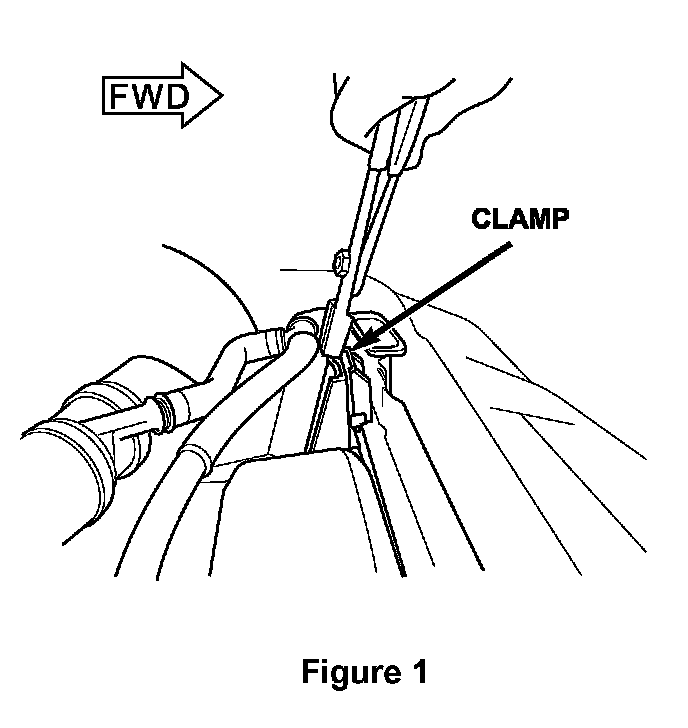

4. Remove the two radiator cooling fan module hold-down clamps (Figure 1)

5. Carefully move the upper and lower radiator hoses away.

6. Gently lift the radiator cooling fan module from the vehicle.

7. Remove the three nuts holding the fan and motor assembly to the module frame.

8. Install the new fan and motor assembly onto the module frame and tighten the three nuts to 45 in-lbs (5 N.m)

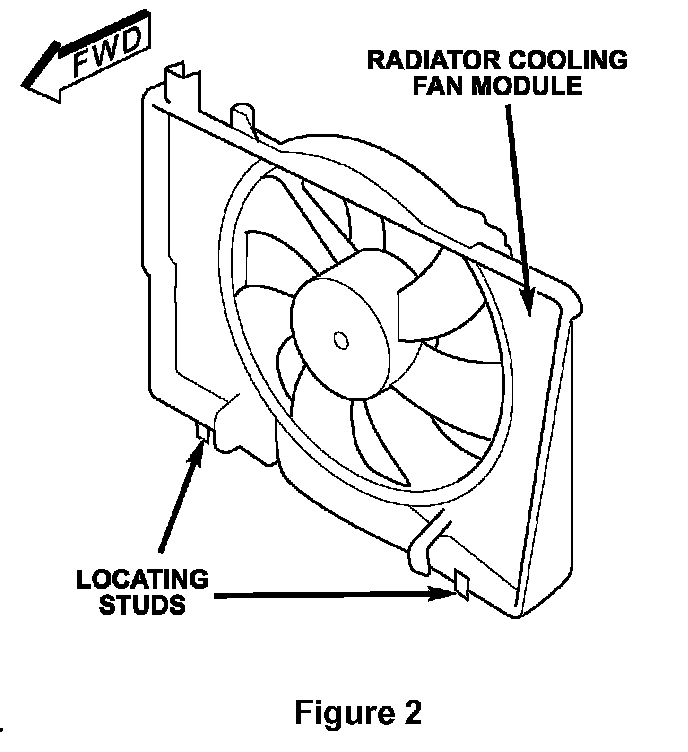

9. Lubricate the two location studs on the bottom of the new radiator cooling fan module with Mopar Silicone Spray Lube (P/N 04318070AB) or equivalent (Figure 2).

10. Carefully move the upper and lower radiator hoses away and gently lower the radiator cooling fan module into the vehicle.

11. Align the radiator cooling fan module studs into the rubber locating mounts.

12. Install the two radiator cooling fan module hold-down clamps.

13. Clip the upper coolant hose through the holding bracket on top of the radiator cooling fan module housing.

14. Connect the cooling module electrical connector.

15. Connect the negative battery cable.
