Washer Fluid Level Switch: Service and Repair

WASHER FLUID LEVEL SWITCH

REMOVAL

1. Remove the washer reservoir.

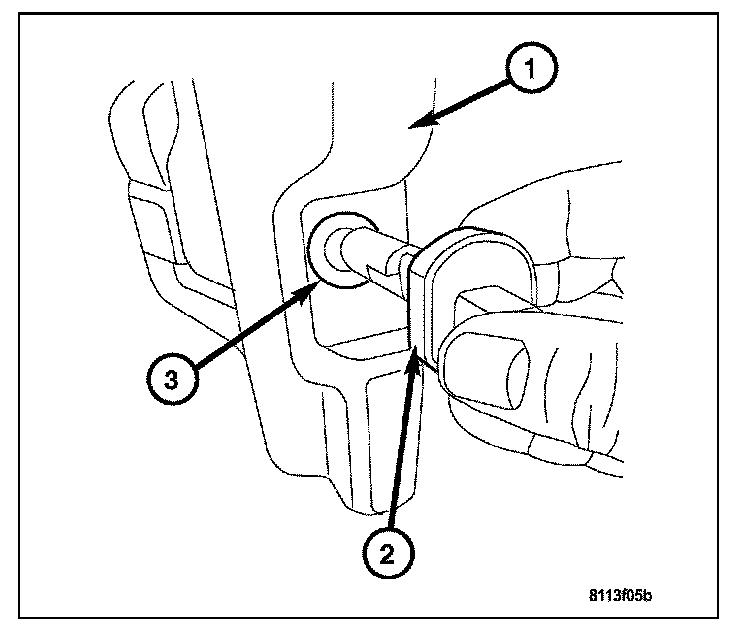

2. Gently pry outward on the body of the washer fluid level switch (2) and pull it away from the rubber grommet (3).
3. Remove the washer fluid level switch (2) from the washer reservoir (1).

INSTALLATION

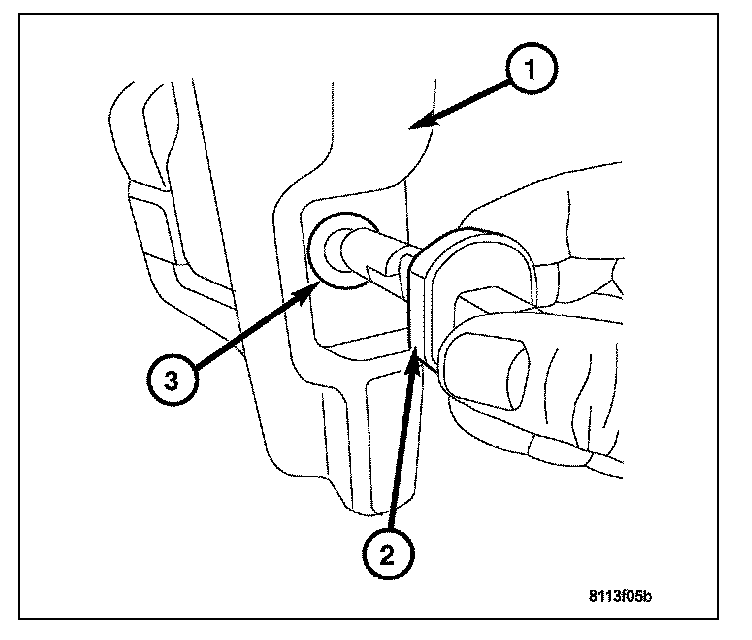

1. Insert the washer fluid level switch (2) into the rubber grommet (3) at the rear of the washer reservoir (1).
2. Press the washer fluid level switch inward until fully seated.
3. Install the washer reservoir.
