Ball Joint

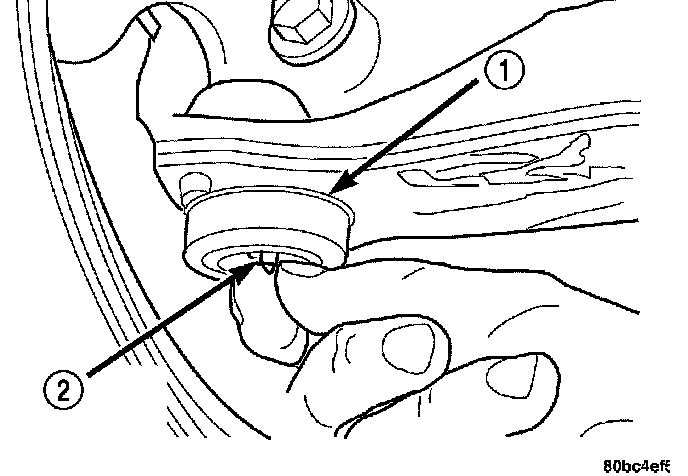

BALL JOINT With the weight of the vehicle resting on the road
wheels, grasp the headless grease fitting (2) as shown. With no mechanical assistance or added force, attempt to move the grease fitting. If the
ball joint (1) is worn, the grease fitting will move.
