BLOWER MOTOR RELAY

REMOVAL
1. Disconnect and isolate the negative battery cable.

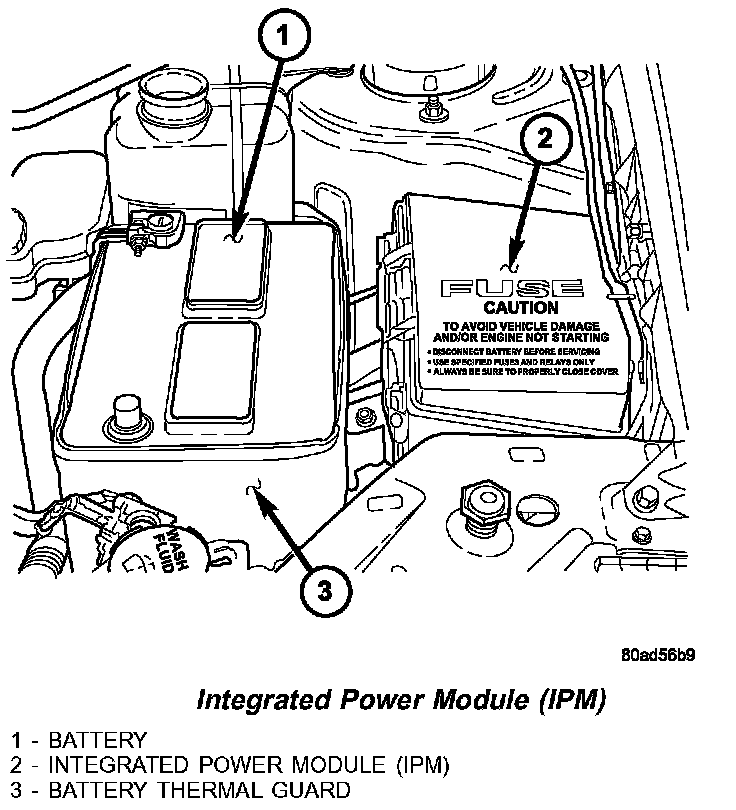

Integrated Power Module (IPM):

2. Remove the cover from the integrated power module (IPM) located in the engine compartment.

NOTE: Refer to the fuse and relay map on the IPM cover for front blower motor relay location.

3. Remove the front blower motor relay from the IPM.

INSTALLATION

NOTE: Refer to the fuse and relay map on the cover of the integrated power module (IPM) for front blower motor relay location.

1. Position the front blower motor relay to the proper receptacle in the IPM.
2. Align the front blower motor relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the terminals are fully seated.
3. Install the cover onto the IPM.
4. Reconnect the negative battery cable.
