Start and Stall Condition
Test 1 - Test 2:
Test 3 - Test 5:

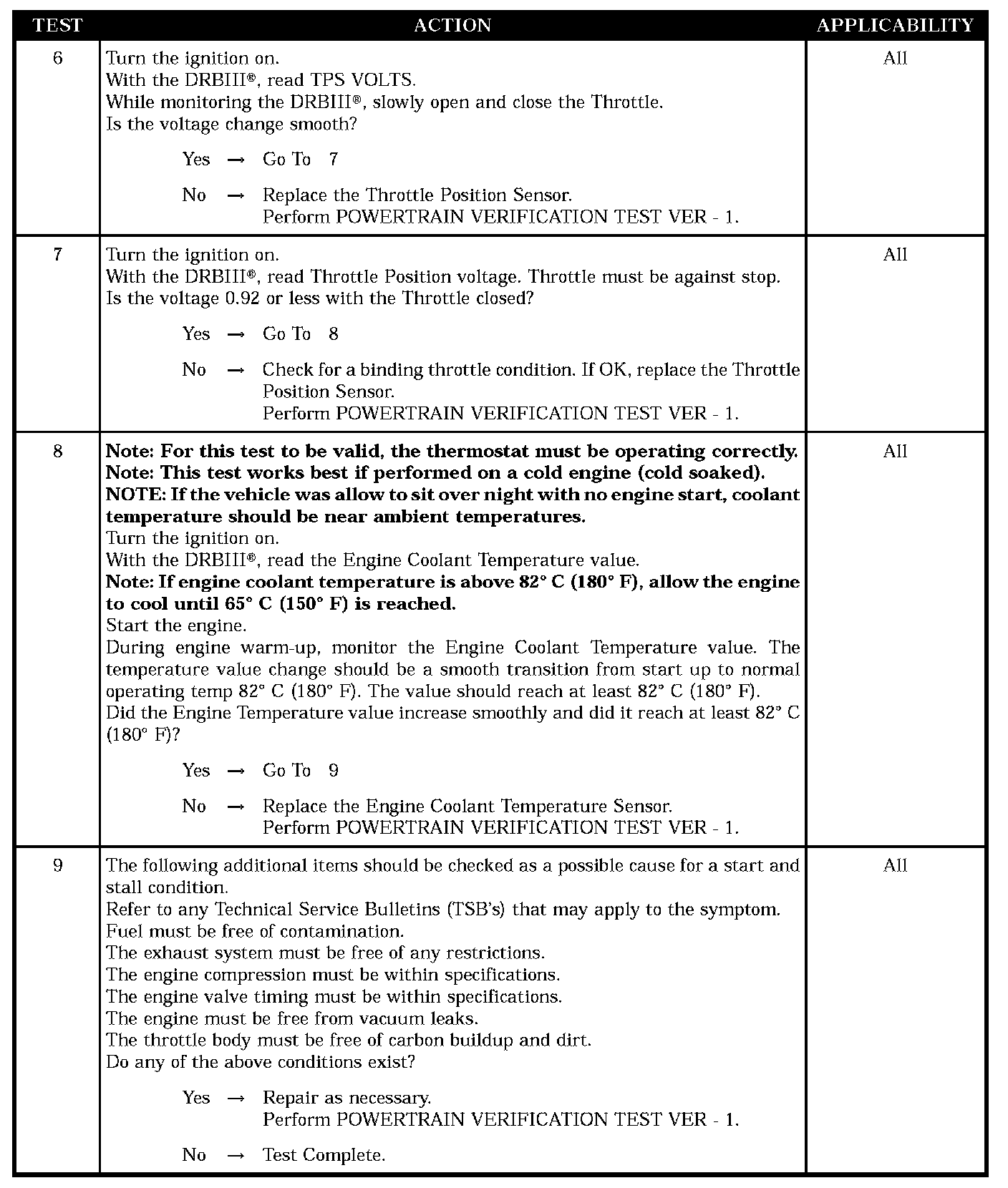

Test 6 - Test 9:
SYMPTOM START AND STALL CONDITION
POSSIBLE CAUSES -
Checking DTCs
-
Checking Skim DTCs
-
Fuel Pressure Out Of Specs
-
TP Sensor Sweep
-
TP Sensor Voltage
Greater Than 0.92 Volts With Throttle Closed
-
ECT Sensor Operation
-
Other possible Causes For Start & Stall
-
Restricted
Fuel Supply Line -
Fuel Pump Inlet Strainer Plugged
-
Fuel Pump Module
