Quarter Panel Mounted

QUARTER PANEL MOUNTED

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.
3. Remove the quarter trim panel for the side of the vehicle that you are replacing the side impact sensor.

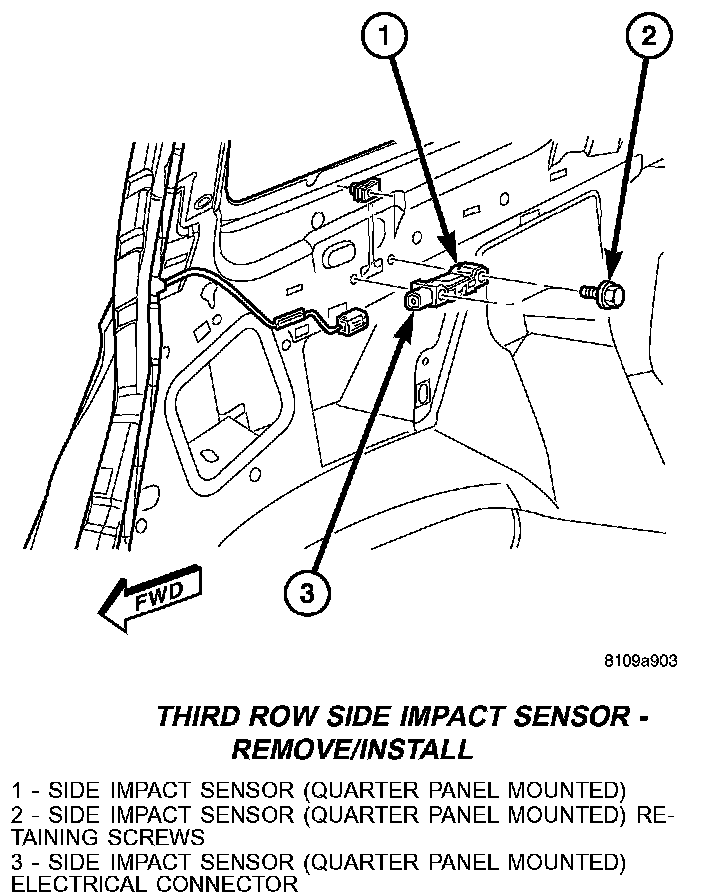

Third Row Side Impact sensor - Remove/Install:




4. Remove the two retaining screws to the impact sensor.
5. Disconnect the electrical connector from the impact sensor and remove from vehicle.

INSTALLATION
1. Position sensor in vehicle.
2. Connect electrical connector.
3. Install the two retaining screws to the impact sensor. Torque screws to 7.3 N.m (65 in. lbs.).
4. Install the quarter trim panel for the side of the vehicle that you are replacing the side impact sensor.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. REFER TO AIRBAG SYSTEM TEST FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH. Testing and Inspection

5. Verify vehicle and system operation.
6. Close hood.
