Shift Interlock Cable: Adjustments

ADJUSTMENT - INTERLOCK CABLE

1. Remove center console assembly.

Fig. 333 Ignition Key/Switch Positions:

2. Move the gear shifter to PARK and the ignition key to the LOCK position (Fig. 333).

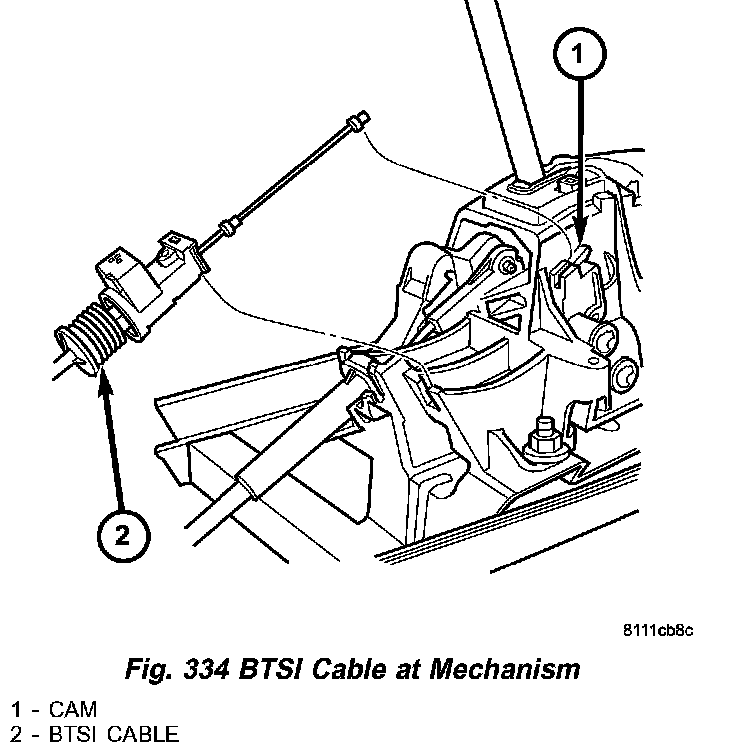

Fig. 334 BTSI Cable at Mechanism:

3. If the interlock cable is being replaced, remove the pin to allow cable to self adjust. Press locking clip (Fig. 334) by hand to secure adjustment.
4. If the interlock cable is not being replaced, the pin will not exist. Loosen the locking clip (Fig. 334) on the interlock cable to allow cable to self adjust. Press locking clip (Fig. 334) by hand to secure adjustment.

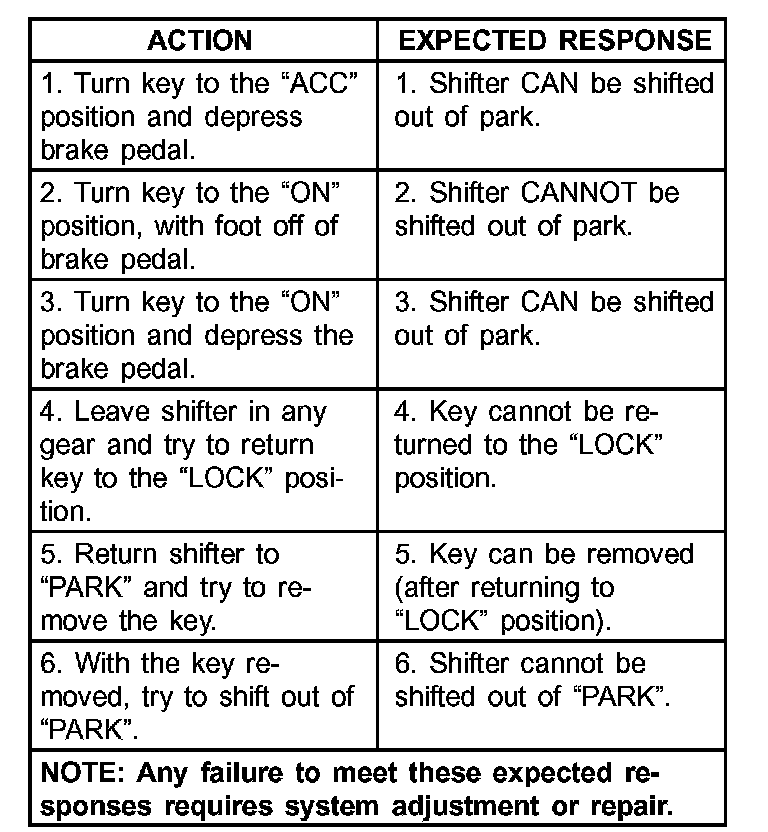

Shift Interlock System Operation Inspection:

5. Install center console assembly.
6. Install the bezel on the shifter console.
7. Install shifter handle.
