Installation






INSTALLATION - 6.1L

REAR WHEEL DRIVE (RWD)





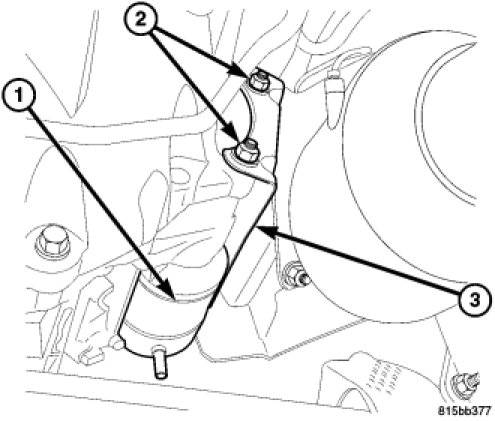

1. Position starter (2) into transmission but do not install bolts.

2. Connect solenoid wire to starter motor (snaps on).

3. Position battery cable to solenoid stud. Install and tighten battery cable eyelet nut. Refer to Torque Specifications. Do not allow starter motor to hang from wire harness.

4. Install and tighten three mounting bolts (1). Refer to Torque Specifications.





5. Position heat shield (3) and install two shield mounting nuts (2).

6. Lower vehicle.

7. Connect negative battery cable.
