Body Isolator - Installation
INSTALLATIONCAUTION: Whenever a body isolator bolt requires servicing or tightening, it is necessary to remove the bolt and install new thread locker compound to the threads. 1.

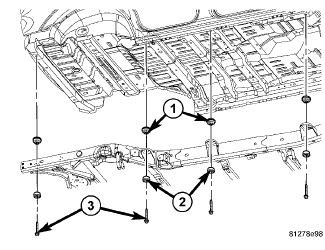

Install the isolators (1) rebound cushions (2), and bolts (3).
2.

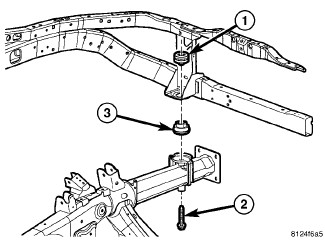

Install the front end sheet metal mounting isolators 1 and 3 and install the bolt (2).
3.
Tighten the bolts to 81 Nm (60 ft. lbs.).
