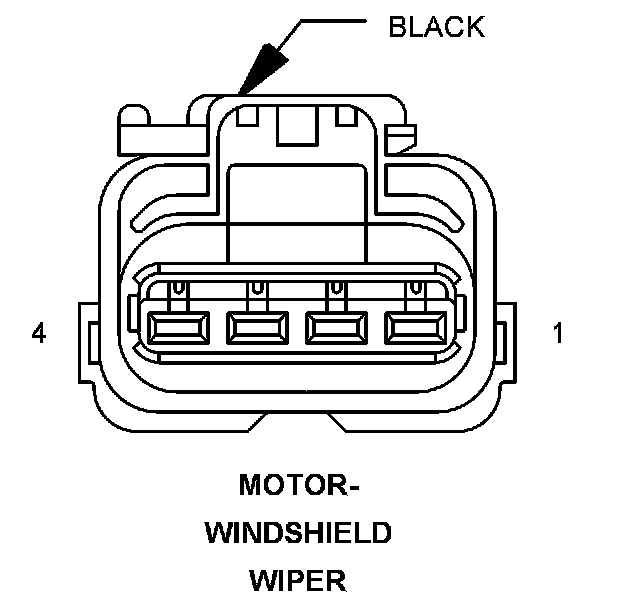

Motor-Windshield Wiper
Component ID:
201
Component :
MOTOR-WINDSHIELD WIPER
Connector:
Name :
MOTOR-WINDSHIELD WIPER
Color :
BLACK
# of pins :
4
Pin Description Circuit 1
FRONT WIPER PARK SWITCH SENSE
W7 20BR/GY
2
GROUND
Z103 14BK/WT
3
FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
W3 14BR/WT
4
FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
W4 14BR/OR
Component Location - 9
