Automatic Transmission/Transaxle

HYDRAULIC SCHEMATICS

HYDRAULIC FLOW IN PARK/NEUTRAL

HYDRAULIC FLOW IN NEUTRAL OVER 8MPH

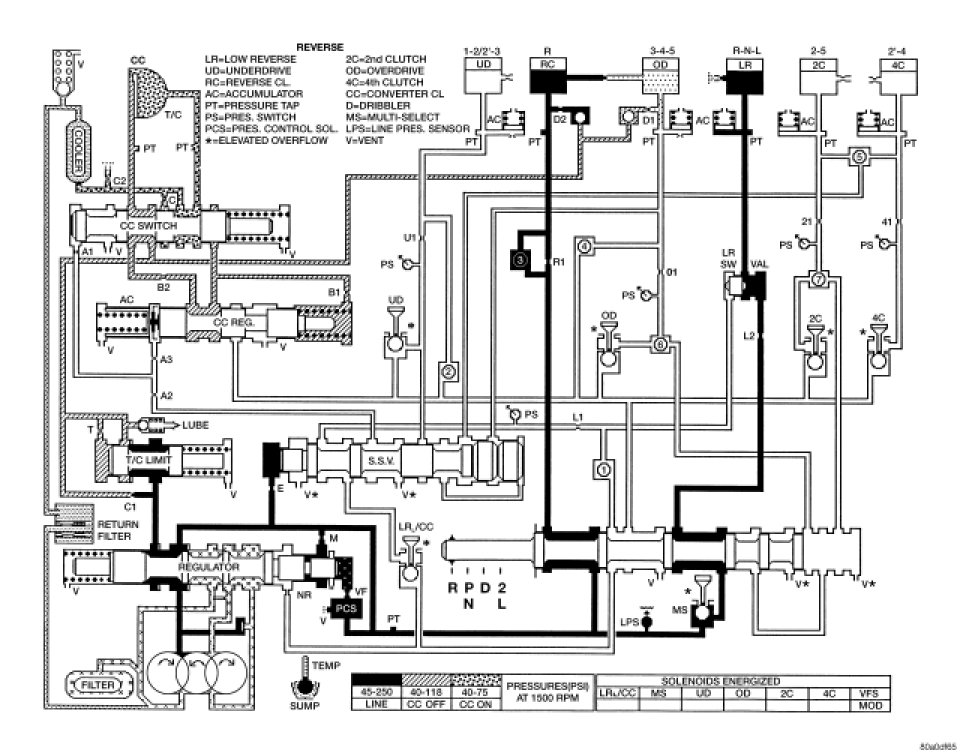

HYDRAULIC FLOW IN REVERSE

HYDRAULIC FLOW IN REVERSE BLOCK

HYDRAULIC FLOW IN FIRST GEAR (FROM N OR OD)

HYDRAULIC FLOW IN FIRST GEAR (AFTER LAUNCH FROM REST)

HYDRAULIC FLOW IN FIRST GEAR (FROM K/D)

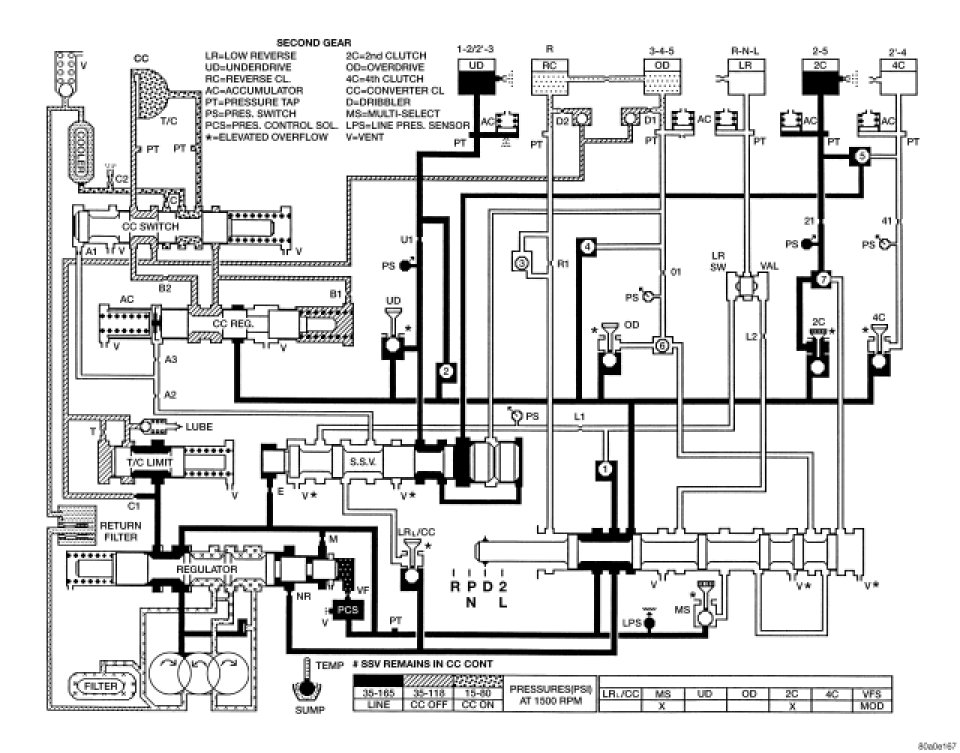

HYDRAULIC FLOW IN SECOND GEAR

HYDRAULIC FLOW IN SECOND GEAR EMCC

HYDRAULIC FLOW IN SECOND PRIME GEAR

HYDRAULIC FLOW IN SECOND PRIME GEAR EMCC

HYDRAULIC FLOW IN DIRECT GEAR

HYDRAULIC FLOW IN DIRECT GEAR (FAILSAFE)

HYDRAULIC FLOW IN DIRECT GEAR EMCC

HYDRAULIC FLOW IN FOURTH

HYDRAULIC FLOW IN FOURTH EMCC

HYDRAULIC FLOW IN FIFTH

HYDRAULIC FLOW IN FIFTH EMCC

HYDRAULIC FLOW IN MANUAL LOW OR AUTOSTICK 1ST

HYDRAULIC FLOW IN MANUAL SECOND

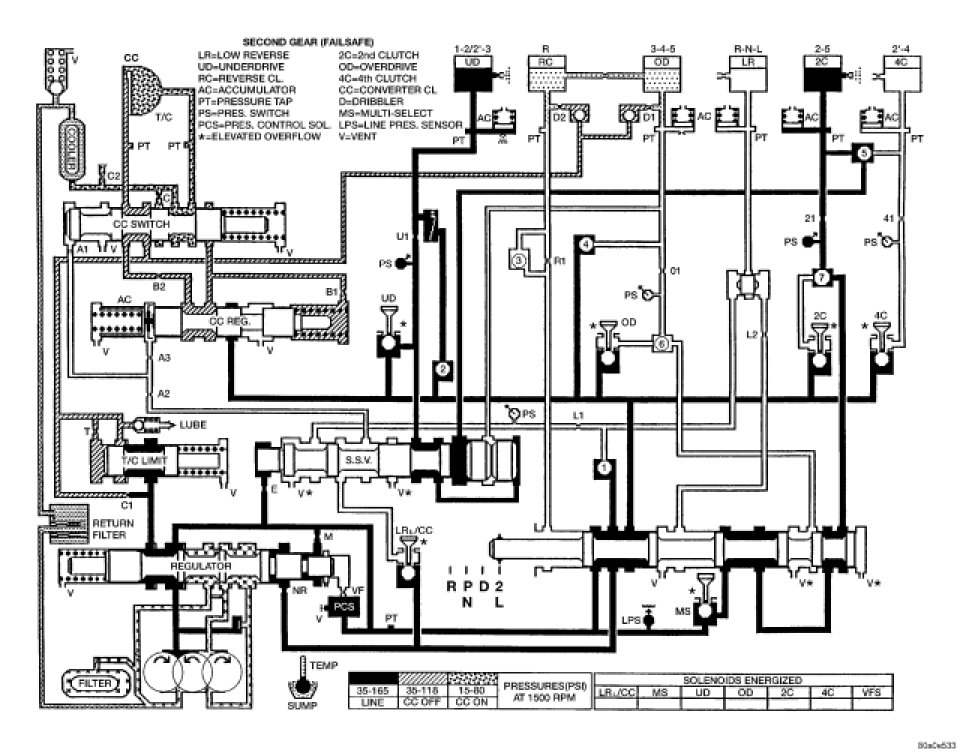

HYDRAULIC FLOW IN MANUAL SECOND (FAILSAFE)
