Installation - Front






INSTALLATION

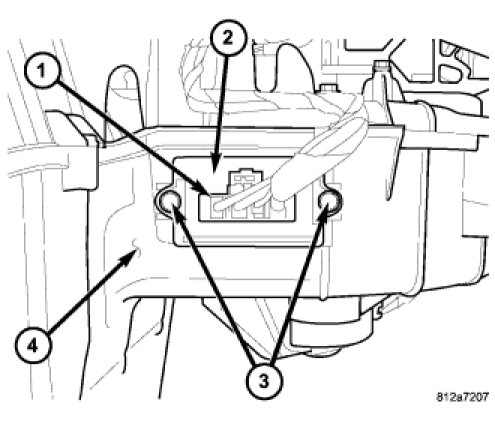

1. Position the blower motor resistor (2) into the front HVAC housing (4).

2. Install the two screws (3) that secure the blower motor resistor to the front HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).

3. Connect the wire harness connector (1) to the blower motor resistor.

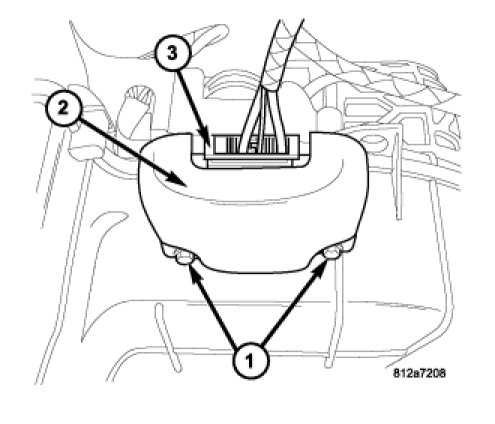

4. If equipped with a trim cover (2), install the trim cover over the blower motor resistor (3) and install the two retaining screws (1). Tighten the screws to 2 Nm (17 in. lbs.).

5. Reconnect the negative battery cable.
