Installation
INSTALLATION 1.
Position the outer window sealing rail and install the cover screws (1).
NOTE: If using a tool to bend the guide, be sure to cover the tool with tape to avoid damaging the vehicle surface.
2.

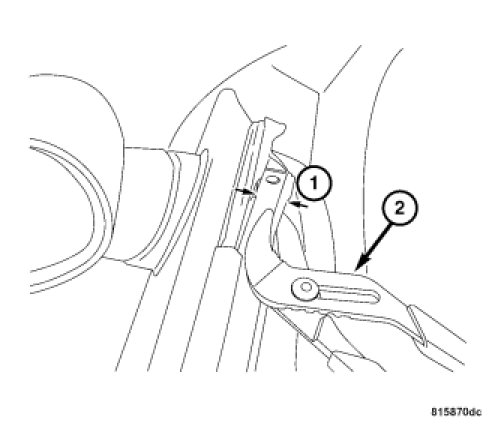

Verify that the inner window seal guide width (1) is 14-15 mm (0.5-0.6 in.). If necessary, bend the guide with tape-covered pliers (2) to achieve the correct gap.
3.
Install the door
trim panel.
