Installation






INSTALLATION





1. Install the condenser.

2. Tighten the mount for the condenser connection fittings (1-2).





3. Install the refrigerant lines (1) to the condenser. Tighten to 24 Nm (18 ft. lbs.).





4. Install the radiator.

5. Install the lower radiator hose to the radiator.





6. Install the upper radiator hose (1) to the radiator.

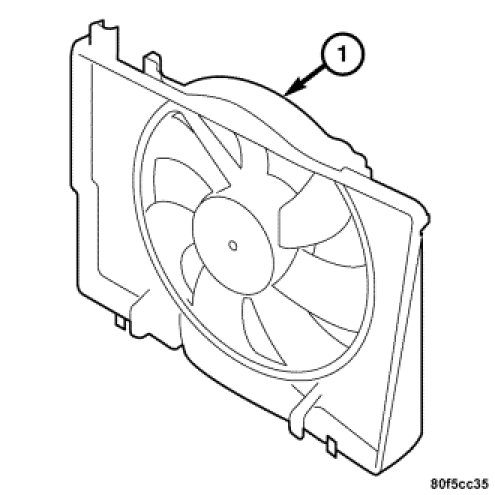

7. Install the radiator fan (1).





8. Install the coolant reservoir (1).

9. Fill the coolant.

10. Charge the refrigerant in the refrigerant system.

11. Connect the negative battery cable.
