Radiator Cooling Fan Control Module: Diagrams

Component ID: 234
Component : RADIATOR FAN CONTROL MODULE

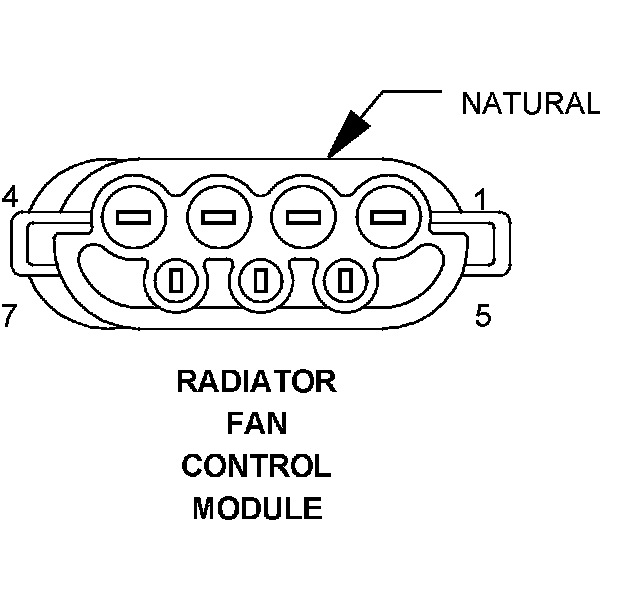

Connector:
Name : RADIATOR FAN CONTROL MODULE
Color : NATURAL
# of pins : 7

Pin Description Circuit
1 RADIATOR FAN CONTROL MODULE GROUND 8BR/BK
2 GROUND 8BR
3 FUSED B(+) 8BK
4 RADIATOR FAN CONTROL MODULE OUTPUT 8BK/DG
5 RADIATOR FAN CONTROL 20GY
6 FUSED IGNITION SWITCH OUTPUT 20PK/RD
7 - -

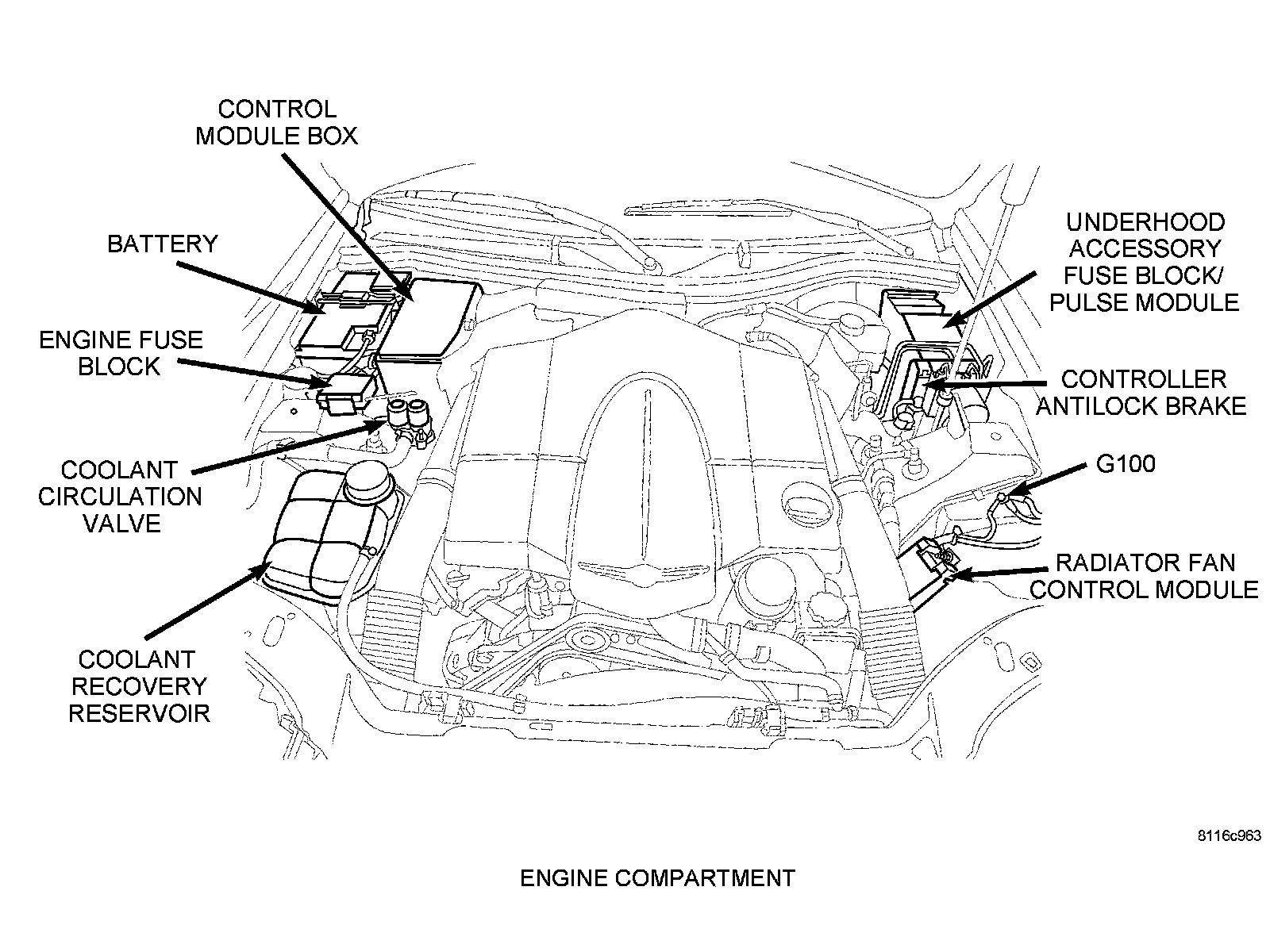

Component Location - 1

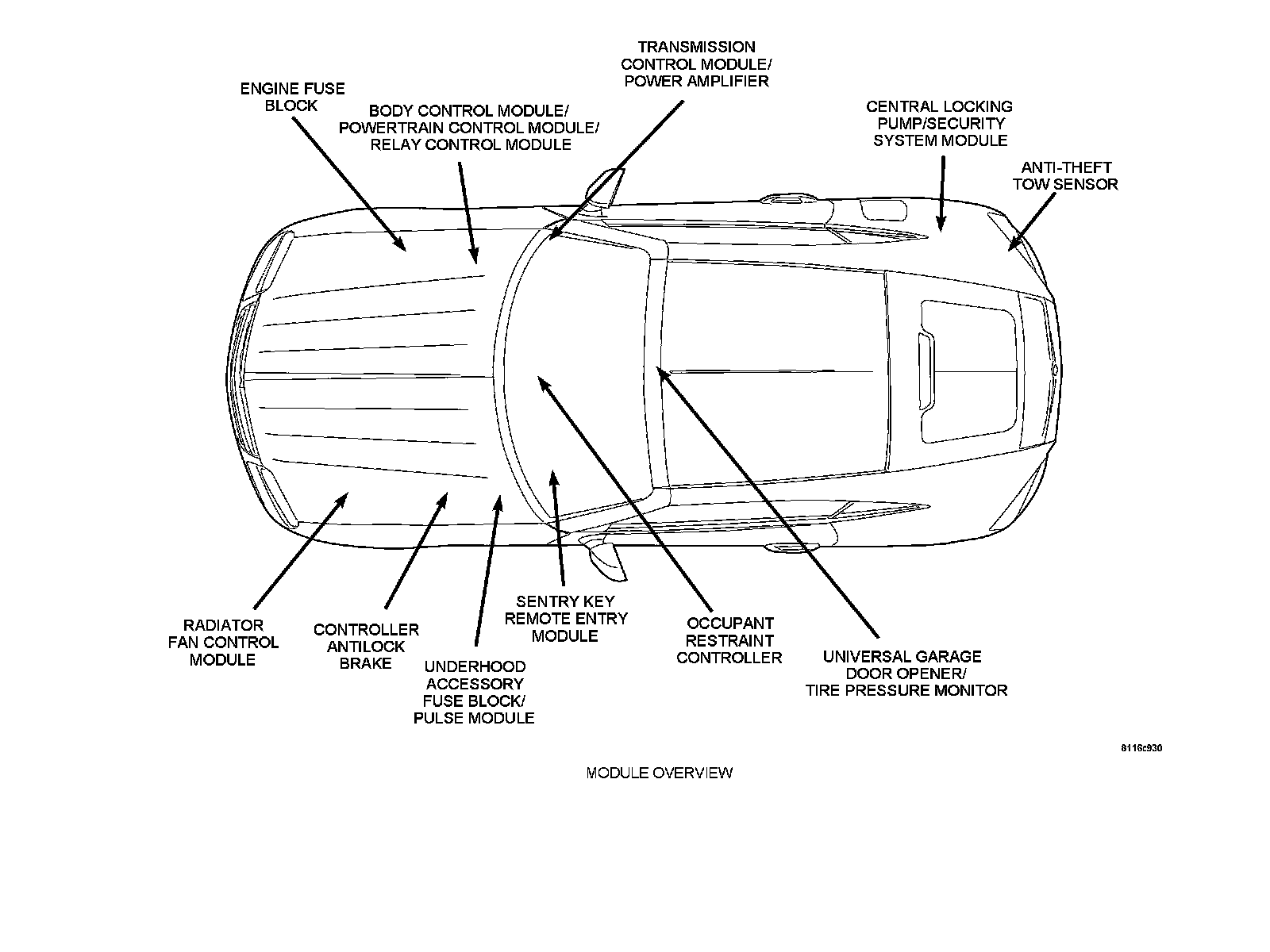

Component Location - 6
