Installation

INSTALLATION

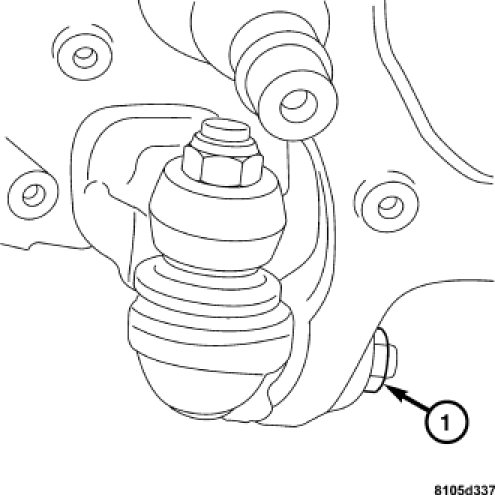

1. Install the steering knuckle and nut (1) to the upper ball joint stud. Tighten to 45 Nm (33 ft. lbs.).

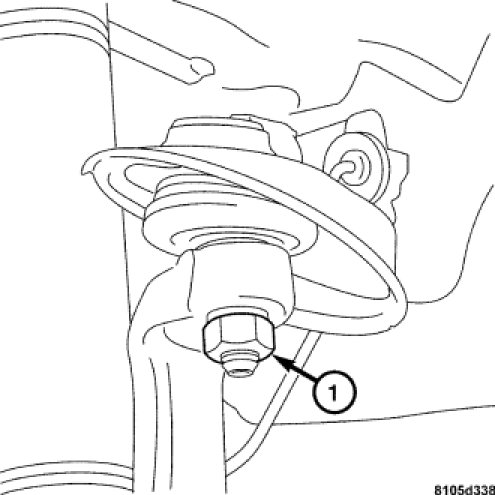

2. Install the steering knuckle and nut to the lower ball joint stud (1). Tighten to 105 Nm (77 ft. lbs.).

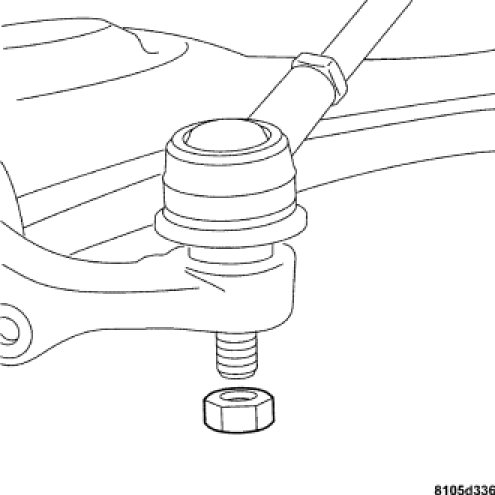

3. Install the tie rod end and nut onto the steering knuckle. Tighten to 50 Nm (37 ft. lbs.).

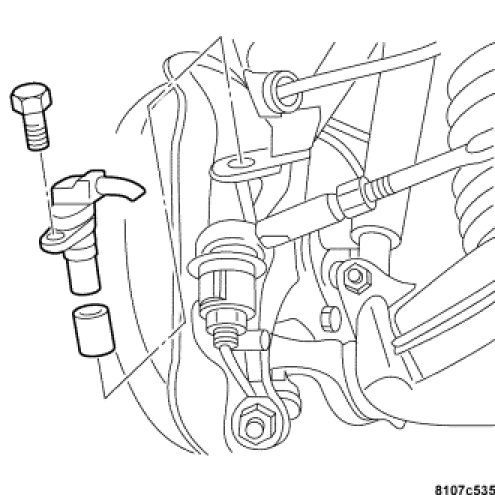

4. Install the Wheel Speed Sensor (WSS) and bolt. Tighten to 22 Nm (16 ft. lbs.).

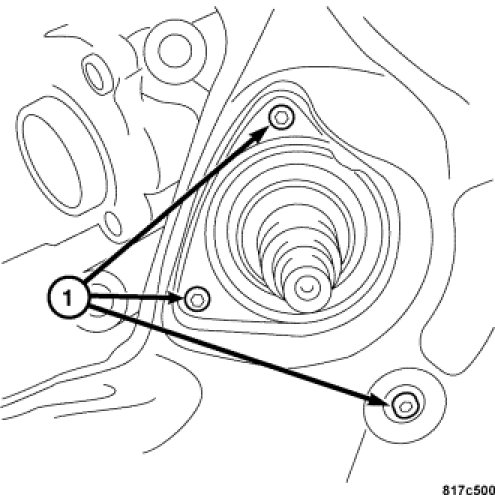

5. Install the disc brake dust shield and three hex bolts (1). Tighten to 22 Nm (16 ft. lbs.).




6. Install the front wheel hub.
7. Install the front disc brake rotor (1).




8. Install the front disc brake caliper (1).
9. Install the front wheel and tire assembly.
10. Lower the vehicle and check vehicle alignment.
