Installation
PITMAN ARM - LHD 1.
Remove any oil and grease from the splined section of the
pitman arm shaft and the pitman arm.
2.

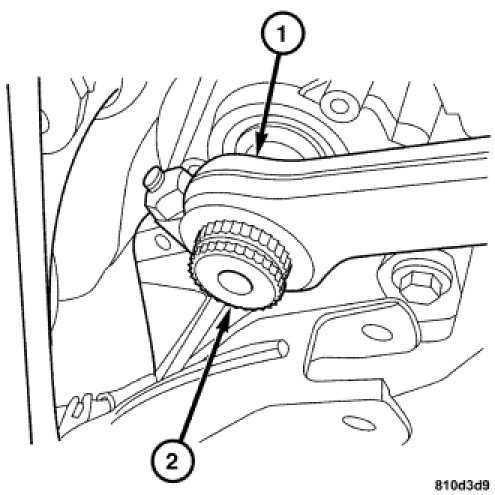

Install the
pitman arm (1) to the pitman arm shaft (2).
3.

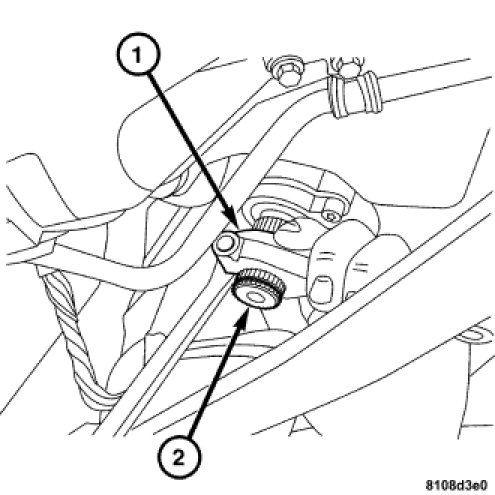

Install the snap ring (2).
4.
Install the
pitman arm to the previously measured depth of measurement "A". Tighten the pinch bolt to
55 Nm (41 ft. lbs.).
