Installation






INSTALLATION





1. Insert the washer reservoir behind the right front wheel and align the rubber mounting grommets.

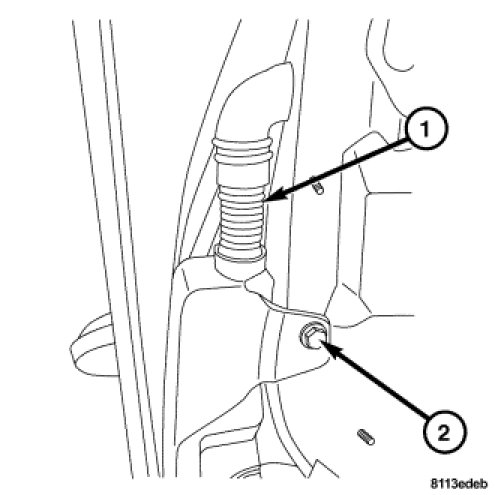

2. Install the washer fluid filler tube (1) to the washer reservoir.

3. Install the washer reservoir attachment bolt (2).





4. Connect the washer fluid level switch harness connector (4).

5. Connect the washer pump motor harness connector and install the washer pump motor supply hose (3).

6. Install the right front inner fender liner.

7. Connect the negative battery cable.
