Removal






REMOVAL





1. Remove the wiper arms.

2. Remove the cowl grille.

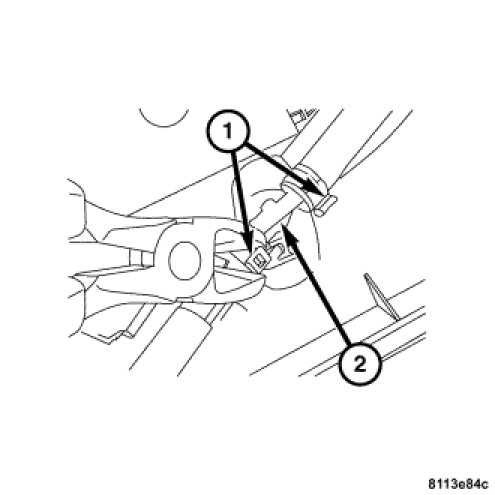

3. Remove the clamp(s) (1) attaching the hose to the washer nozzle (2), then remove the hose.





4. Pull the thermoswitch off the cowl grille, then disconnect the washer nozzle harness connector (1 and/or 2) from the thermoswitch.





NOTE: The main washer nozzle harness connector (1) can be disconnected to obtain more movement of the cowl grille.

5. Disconnect the washer nozzle harness connector (2) from the nozzle.

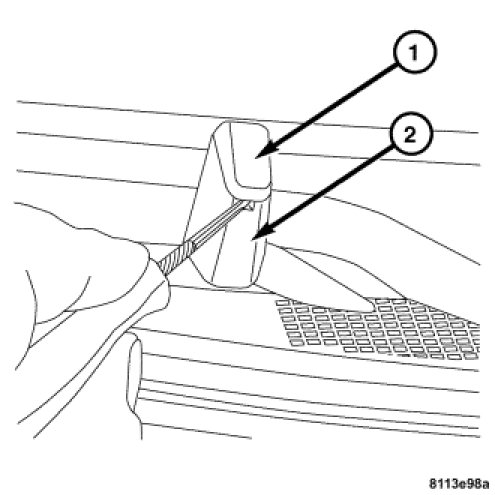

6. Insert a small screwdriver into the slot between the washer nozzle (1) and the cowl grille (2) pressing inward to release the retaining clip.

7. Remove the washer nozzle from the cowl grill.
