Window Fails To Drop When Door Opened

*WINDOW FAILS TO DROP WHEN DOOR OPENED





NOTE: Left side graphic is shown - right side similar.

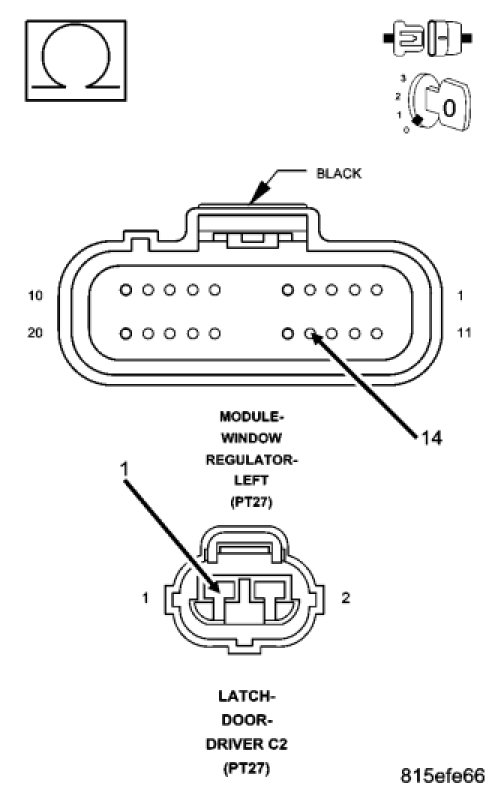

For a complete wiring diagram refer to Diagrams/Electrical





Diagnostic Test

1. DTC PRESENT

With the scan tool, check for any Window, Power Top or Door Lock related DTC's.

Does the scan tool display any Window, Power Top or Door Lock related DTC's?

No

- Go To 2

Yes

- Refer to symptom list for problems related to Power Windows, Top or Door Locks.

2. WINDOW DROP SWITCH OPEN





Remove the door trim panel.

Disconnect the Door Latch C2 connector (on the latch assembly).

Connect a jumper wire between the (Q58/Q59) Window Drop Switch Sense circuit and ground.

With the scan tool, read the Pawl Switch status

Does the scan tool display Pawl Switch - CLOSED?

Yes

- Replace the Door Latch Assembly.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3. (Q58/Q59) WINDOW DROP SWITCH SENSE CIRCUIT OPEN





Turn the ignition off.

Disconnect the Window Regulator Module connector.

Measure the resistance of the (Q58/Q59) Window Drop Switch Sense circuit between the Door Latch C2 connector and the Window Module Connector.

Is the resistance below 5.0 ohms?

Yes

- Replace the Window Regulator Module Assembly.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the (Q58/Q59) Window Drop Switch Sense circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
