2.4L Turbo

2.4L TURBO





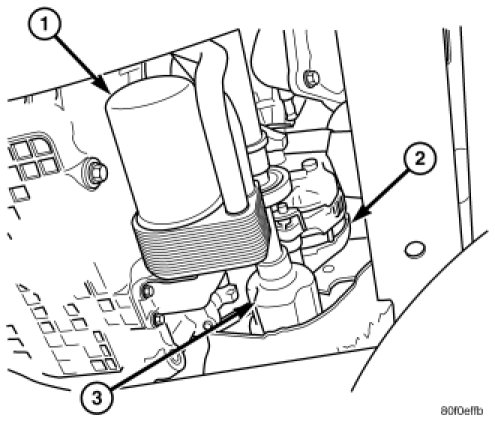

The generator is located above the oil filter and axle shaft.

1. Disconnect the negative battery cable.




2. Remove the 2 bolts from the top of the heat shield on the generator.




3. Remove nut from the upper T-bolt adjustment bracket.




4. Raise vehicle and support.

5. Remove the right front wheel.

6. Remove the accessory drive splash shield.

7. Remove the lower heat shield bolt.

8. Remove the generator heat shield.




9. Unplug the field circuit from the generator.

10. Remove the B+ terminal nut and wire.

11. Loosen the accessory drive belt T-bolt.




12. Remove the pencil strut.




13. Loosen the lower generator pivot bolt.




14. Remove the generator belt.

15. Remove the axle retaining nut.

16. Remove the lower control arm from the steering knuckle.

17. Remove the 2 bolts for the axle shaft bearing support.

18. Remove the axle shaft assembly. Put a container under the transmission to catch the transmission fluid from the transmission.




19. Remove the generator from the lower mounting bracket and set generator to the side.

20. Remove the lower mounting bracket for the generator.




21. Remove generator through the axle shaft hole.
