Installation






INSTALLATION

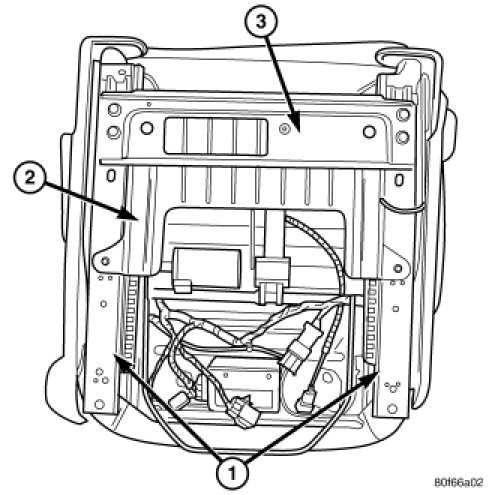

1. Reinstall the power seat track (1) onto the seat cushion frame. Torque bolts to 28 Nm (21 ft. lbs).

2. Secure and connect the power seat wire harness on the power seat track (1).

3. Install the seat cushion side shields.

4. Install the lower seat track cover (2).

5. Install the bolts retaining the rear riser (3). Torque bolts to 28 Nm (21 ft. lbs).

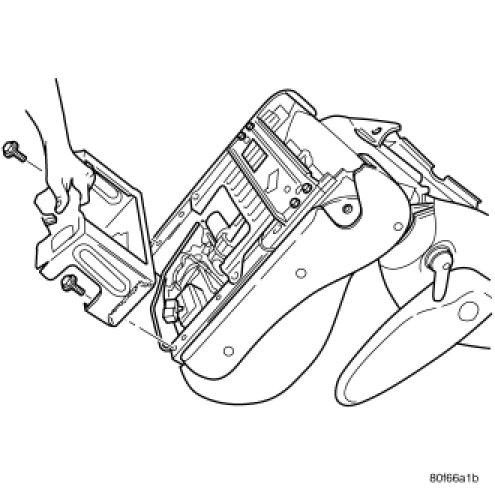

6. Install the bolts retaining the front riser. Torque bolts to 28 Nm (21 ft. lbs).

7. Reinstall the power seat assembly into the vehicle. Torque bolts to 61 Nm (45 ft. lbs).

8. Reconnect the battery negative cable.
