Installation - Convertible






INSTALLATION - CONVERTIBLE

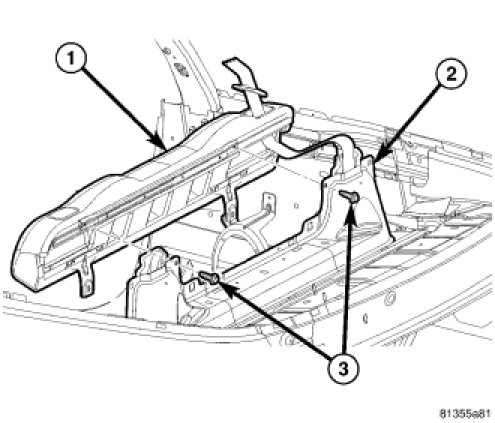

1. Place bolster (1) into vehicle.

2. Install right and left seat belt through bolster assembly.

3. Install both bezels at seat belt through holes in headrest assembly.

4. Install two screws from the rear attaching upper bolster assembly to rear seat back panel (2).

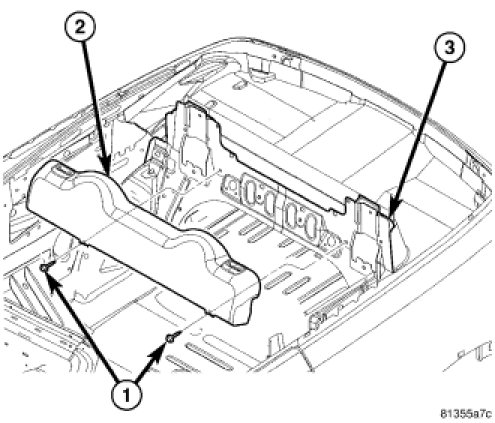

5. Install two screws (1) from front side upper bolster assembly to rear seat back panel (2).

6. Install push pin fasteners attaching molding upper seat belt to top well.

7. Install right rear seat belt lower anchor.

8. Install left rear seat belt lower anchor.

9. Place rear seats in the upright position.

10. Raise convertible top.
