Convertible






CONVERTIBLE

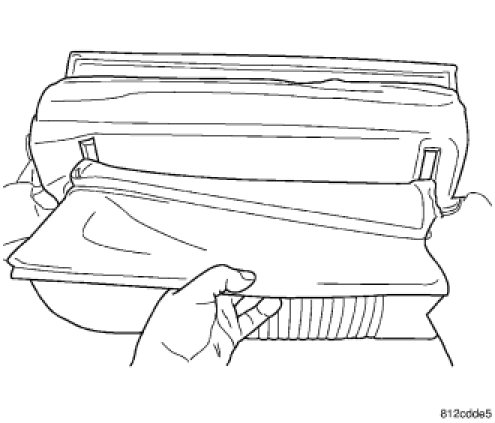

1. Place seat back panel on to the foam. Roll seat cover onto the back panel (1) and foam (2).





2. Pull seat back cover down into position and install the hog rings (2).





3. Pull seat cover down and around the bottom of the seat back.





4. Roll cover upward to hog rings (1). Cut hog rings to free cover.

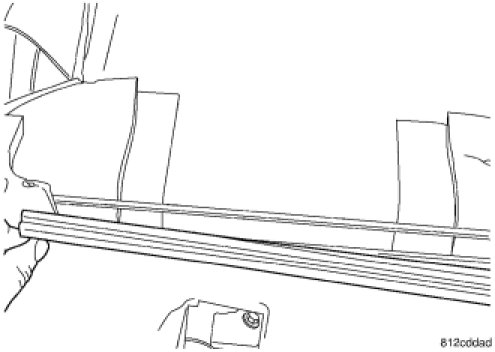

5. Connect the J-strap to the upper rod.





6. Connect the J-strap to the from lower rod.





7. Connect the J-strap (1) and install hog rings (3).

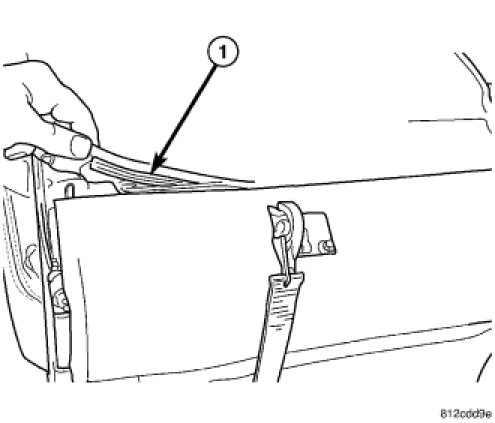

8. Install push pin fasteners (1). Pull seat back cover down and smooth out any wrinkles.





9. Engage the J-strap retainer (1).





10. Install rear seat back.

11. Install rear seat.
