Coupe

COUPE

1. Position cover at the top of seat back.

2. Carefully roll cover down to the area that hog rings are to be installed.

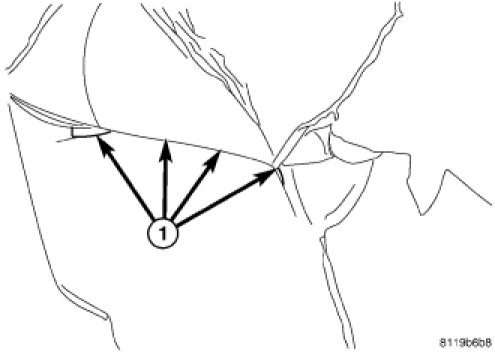

3. Install hog rings.

4. Roll cover downward.

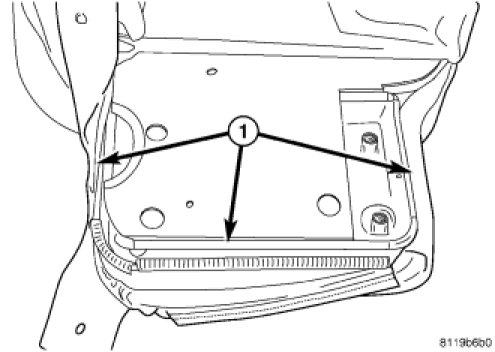

5. Engage the J-strap retainer

6. Install new head restraint sleeve guides.

7. Install seat back to seat cushion. Tighten bolts to 40 Nm (30 ft. lbs.) torque.

8. Install seat in vehicle.

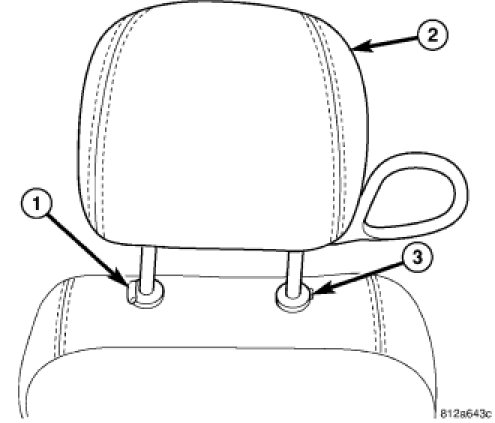

9. Install head restraint.

10. Check seat back and headrest operation.
