Convertible

CONVERTIBLE




1. Remove seat from vehicle.

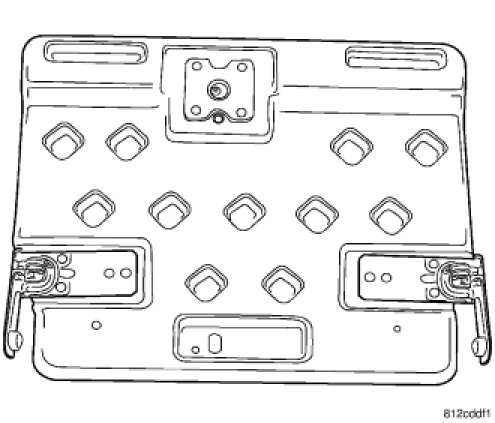

2. Remove rear seat back.





3. Disengage the J-strap retainer.

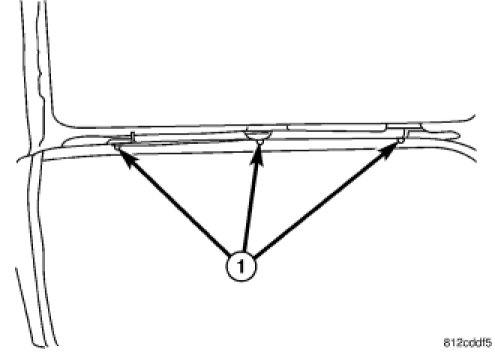

4. Roll flap back to access push pin fasteners (1).





5. Raise back flap to release the hook and loop (2) to access the J-strap (1) and hog rings (3). Release J-strap (1) and cut the hog rings (3).





6. Disconnect the lower J-strap from the rod.





7. Disconnect the upper J-strap from the rod.





8. Roll cover upward to hog rings (1). Cut hog rings to free cover.





9. Roll seat cover bottom to clear the foam.





10. Roll seat back cover to the hog rings. Cut hog rings (1).





11. Pull back panel (1) free of the seat cover and foam (2).





12. Remove seat back cover from the foam.
