Installation
INSTALLATION 1.
Position
seat cover on cushion.
2.
Align
seat cover with cushion alignment indentations.
3.
Install hog rings.
4.
Engage J-strap attaching
seat cover to front of
seat cushion frame.
5.

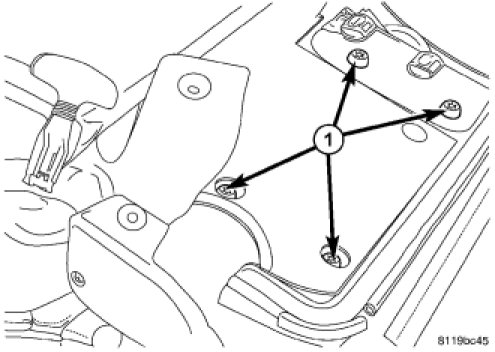

Install track assembly. Tighten front track to pan bolts to 12 Nm (9 ft. lbs.).
6.
Install
seat back.
7.
Install rear seat cushion side shields.
8.
Install seat in vehicle.
