Installation
INSTALLATION 1.

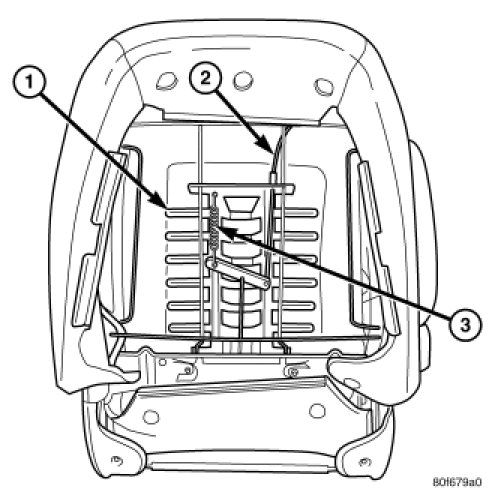

Snap the lumbar assembly (1) on the seat back frame. Be careful not to break the retaining pins, if broken replace with new pieces.
2.
Connect the lumbar cable (2) and connect the mechanism spring (3) on the lumbar assembly.
3.
Install the
seat back trim cover on the seat back frame.
