Installation






INSTALLATION

WARNING: Before servicing the seat the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury. Refer to restraint systems for service procedures.

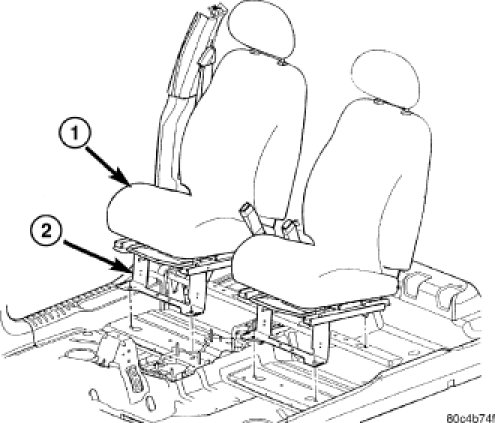

1. Place seat into position in vehicle. Do not use the head restraint, side shield, recliner handle, or the adjuster lift bar to move the seat.

2. Engage electrical connectors, if equipped.

3. Connect the battery negative cable.

4. Install bolts attaching seat track to floor crossmember. Tighten front seat bolt to 61 Nm (45 ft. lbs.).

5. Install rear seat track attaching bolts. Tighten rear seat bolts to 61 Nm (45 ft. lbs.).
