Alternator




Component ID: 104
Component : GENERATOR

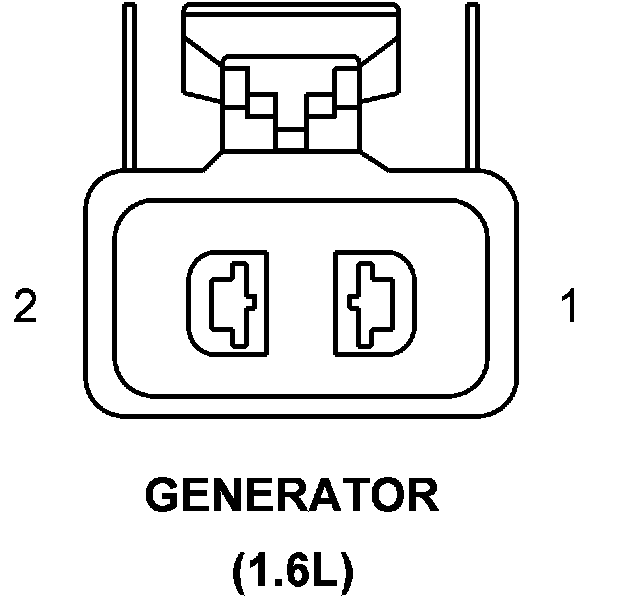

Connector:
Name : GENERATOR
Color :
# of pins : 2
Qualifier : (1.6L)




Pin Description Circuit
1 - -
2 GEN FIELD CONTROL K125 18DG

Component Location - 17




Component Location - 19




Component Location - 21




Component Location - 26




Component Location - 24

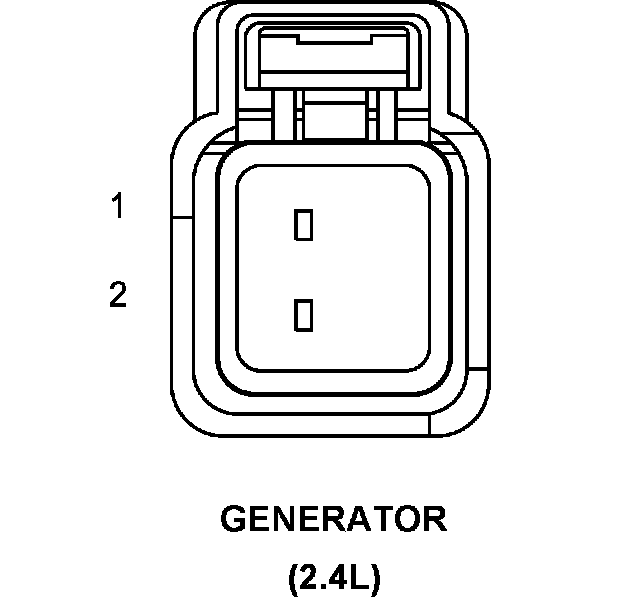

Connector:
Name : GENERATOR
Color :
# of pins : 2
Qualifier : (2.4L)




Pin Description Circuit
1 GEN FIELD CONTROL K20 18BK
2 GEN SENSE A803 16DG

Component Location - 17




Component Location - 19




Component Location - 21




Component Location - 26




Component Location - 24

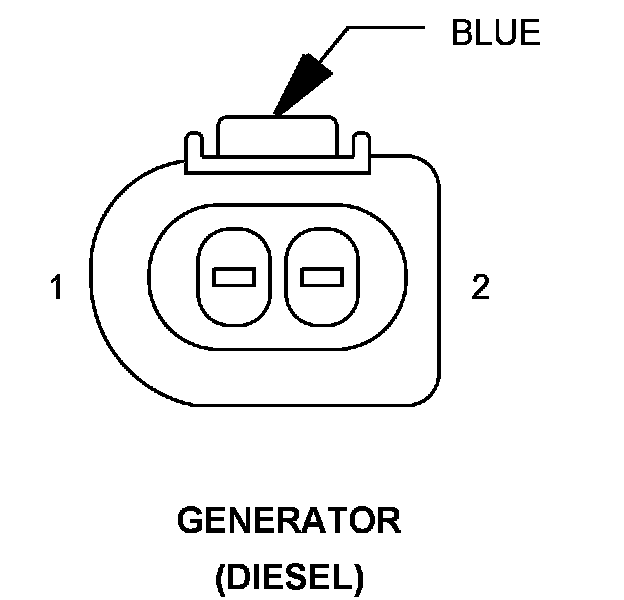

Connector:
Name : GENERATOR
Color : BLUE
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 - -
2 LIN BUS D509 18LB

Component Location - 17




Component Location - 19




Component Location - 21




Component Location - 26




Component Location - 24

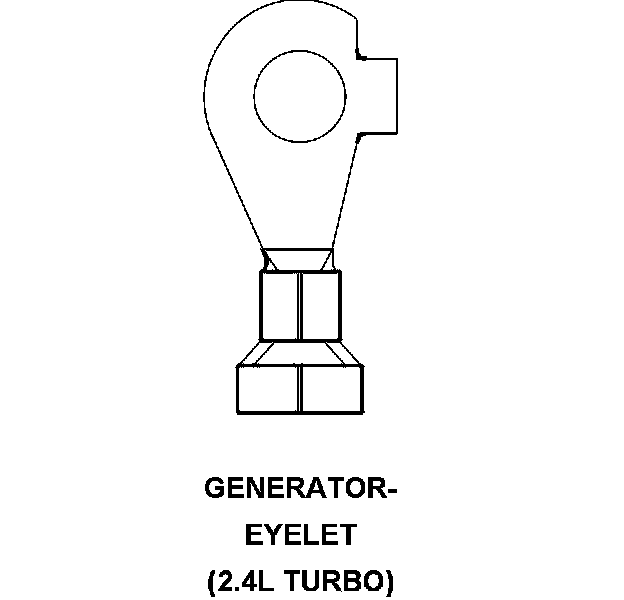

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (2.4L TURBO)




Pin Description Circuit
1 B(+) A801 4BK/GY

Component Location - 17




Component Location - 19




Component Location - 21




Component Location - 26




Component Location - 24

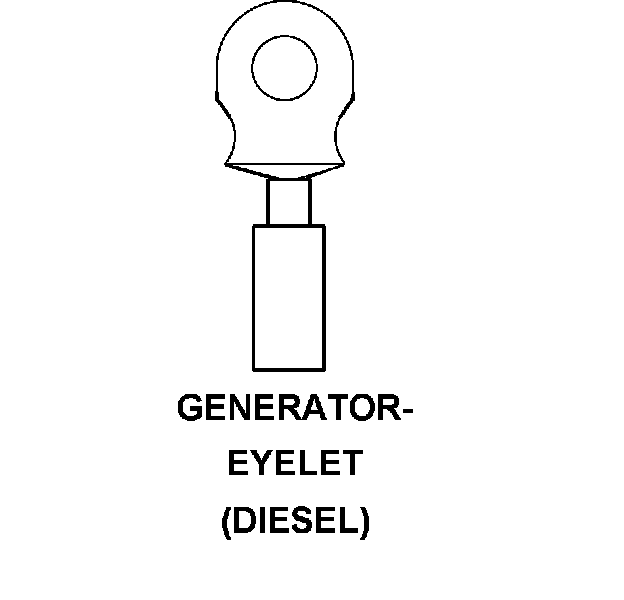

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A11 4BK/GY

Component Location - 17




Component Location - 19




Component Location - 21




Component Location - 26




Component Location - 24

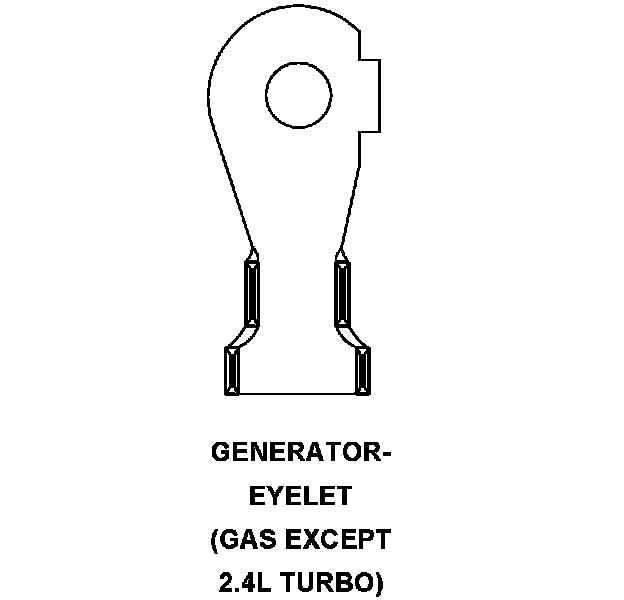

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (GAS EXCEPT 2.4L TURBO)




Pin Description Circuit
1 B(+) A801 6BK/GY

Component Location - 17




Component Location - 19




Component Location - 21




Component Location - 26




Component Location - 24
