Power Outlet-Console

Component ID: 196

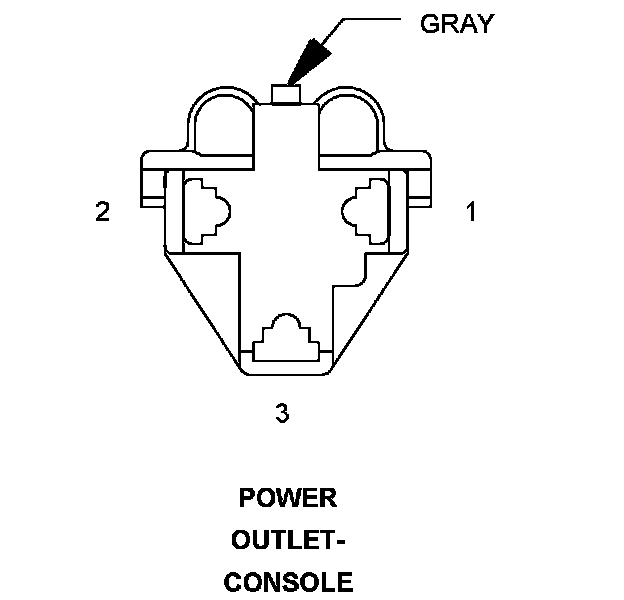

Component : POWER OUTLET-CONSOLE

Connector:
Name : POWER OUTLET-CONSOLE
Color : GRAY
# of pins : 3

Pin Description Circuit
1 FUSED B(+) A950 16RD/WT
2 - -
3 GROUND Z907 16BK

Component Location - 42
