Brake Light Switch

Component ID: 391
Component : SWITCH-STOP LAMP

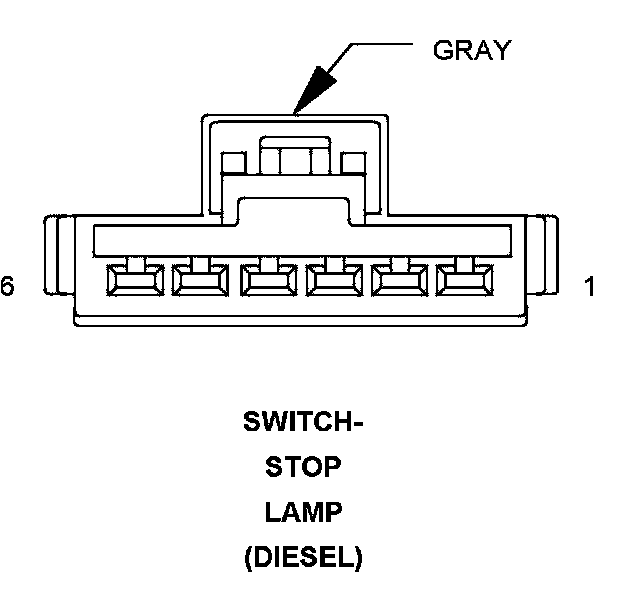

Connector:
Name : SWITCH-STOP LAMP
Color : GRAY
# of pins : 6
Qualifier : (DIESEL)




Pin Description Circuit
1 FUSED B(+) A924 18RD
2 PRIMARY BRAKE SWITCH SIGNAL L53 18DG/WT
3 - -
4 - -
5 GROUND Z902 20BK
6 SECONDARY BRAKE SWITCH SIGNAL B15 20DG/WT

Component Location - 11




Component Location - 12




Component Location - 14

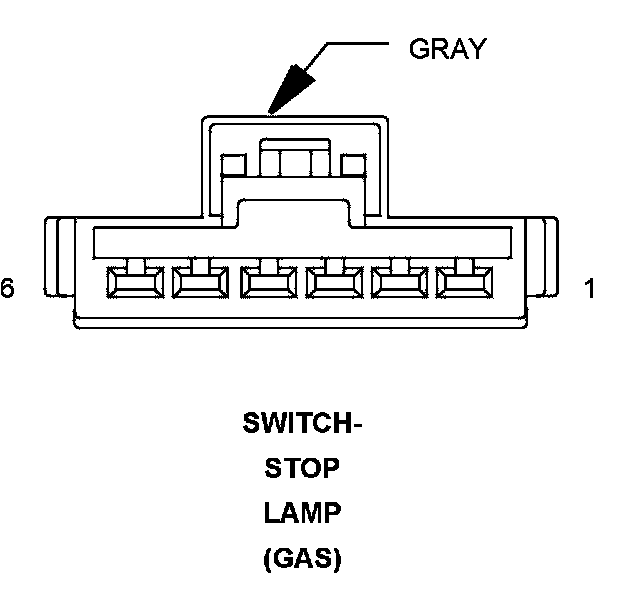

Connector:
Name : SWITCH-STOP LAMP
Color : GRAY
# of pins : 6
Qualifier : (GAS)




Pin Description Circuit
1 FUSED B(+) A924 18RD
2 PRIMARY BRAKE SWITCH SIGNAL L53 18DG/WT
2 BRAKE LAMP SWITCH OUTPUT L53 18DG/WT
3 S/C SUPPLY V32 20VT/YL
4 S/C BRAKE SWITCH OUTPUT V397 20VT/BR
5 GROUND Z902 20BK
6 SECONDARY BRAKE SWITCH SIGNAL B15 20DG/WT
6 BRAKE LAMP SWITCH SIGNAL B15 20DG/WT

Component Location - 11




Component Location - 12




Component Location - 14
