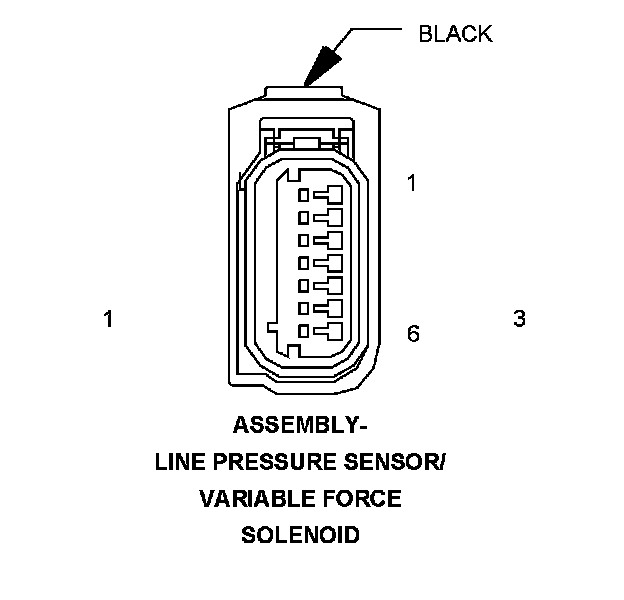

Assembly-Line Pressure Sensor/Variable Force Solenoid




Component ID: 13
Component : ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID

Connector:
Name : ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID
Color : BLACK
# of pins : 6
Gender : FEMALE




Pin Description Circuit
1 - -
2 5 VOLT SUPPLY F856 20YL/PK
3 LINE PRESSURE SENSOR SIGNAL T38 18YL/BR
4 SENSOR GROUND K900 20DB/DG
5 TRANSMISSION CONTROL OUTPUT T16 18YL/OR
6 PRESSURE CONTROL SOLENOID CONTROL T118 18DG/WT

Component Location - 20




Component Location - 23
