Starter Motor




Component ID: 364

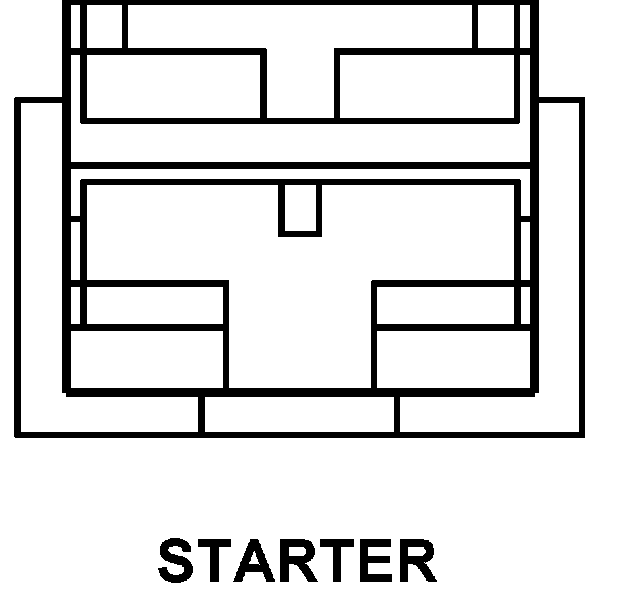

Component : STARTER

Connector:
Name : STARTER
Color :
# of pins : 1




Pin Description Circuit
1 STARTER RELAY OUTPUT T40 14BR
Pin Description Circuit
1 STARTER RELAY OUTPUT T750 16BR
Pin Description Circuit
1 STARTER RELAY OUTPUT T750 14BR
Pin Description Circuit
1 STARTER RELAY OUTPUT T750 14VT

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23






Connector:

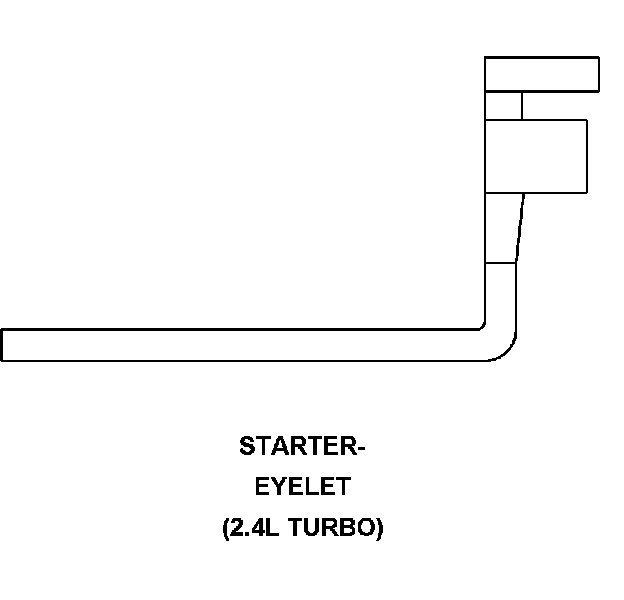

Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (2.4L TURBO)




Pin Description Circuit
1 B(+) A11 8LB

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23






Connector:
Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (GAS EXCEPT 2.4L TURBO)




Pin Description Circuit
1 B(+) A11 6BK/GY
Pin Description Circuit
1 B(+) A11 10DG

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23






Connector:

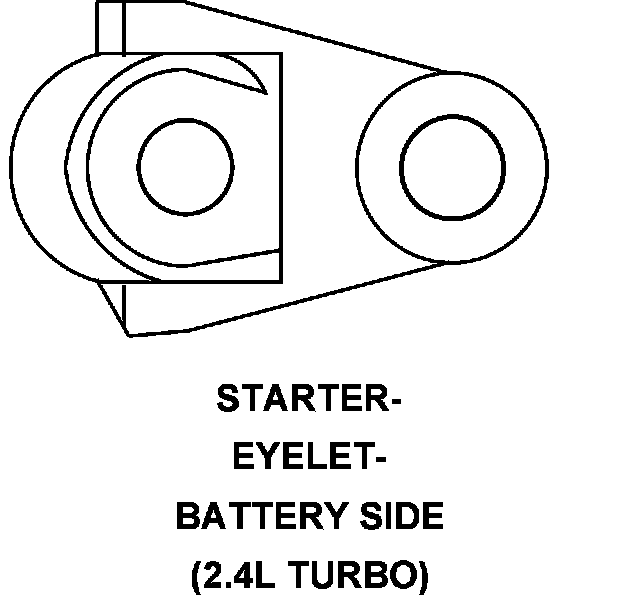

Name : STARTER-EYELET-BATTERY SIDE
Color :
# of pins : 1
Qualifier : (2.4L TURBO)




Pin Description Circuit
1 B(+) A0 4RD

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23






Connector:

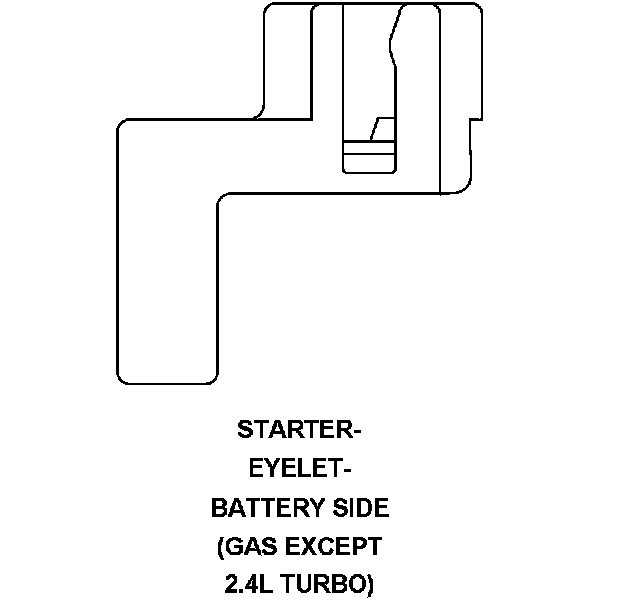

Name : STARTER-EYELET-BATTERY SIDE
Color :
# of pins : 1
Qualifier : (GAS EXCEPT 2.4L TURBO)




Pin Description Circuit
1 B(+) A0 6RD

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23






Connector:

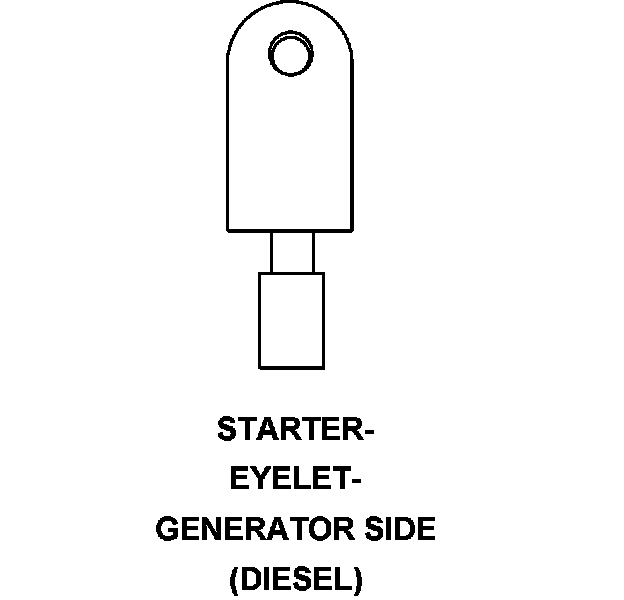

Name : STARTER-EYELET-GENERATOR SIDE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A11 8LB

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23






Connector:

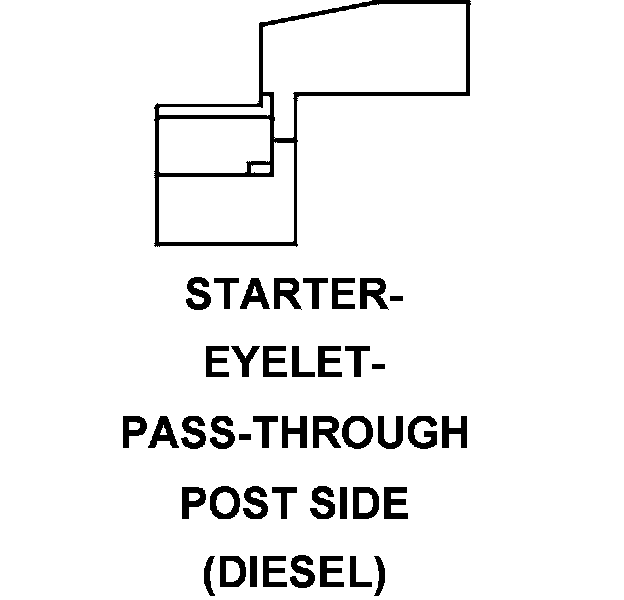

Name : STARTER-EYELET-PASS-THROUGH POST SIDE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A0 1/0RD

Component Location - 17




Component Location - 19




Component Location - 20




Component Location - 4




Component Location - 5




Component Location - 25




Component Location - 23
