Transmission Mode Switch, A/T
Component ID:
367

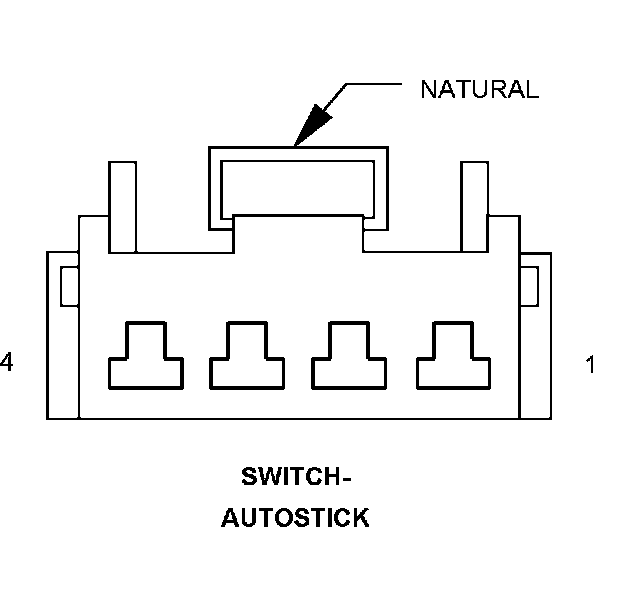

Component :
SWITCH-AUTOSTICK
Connector:
Name :
SWITCH-AUTOSTICK
Color :
NATURAL
# of pins :
4
Pin Description Circuit 1
AUTOSTICK DOWNSHIFT SWITCH SIGNAL
T44 20YL/LB
2
AUTOSTICK UPSHIFT SWITCH SIGNAL
T5 20LG/LB
3
GROUND
Z906 20BK
4
FUSED
IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
F902 20PK
Component Location - 41
