Removal
REMOVAL 1.
Open liftgate.
2.
Remove jack storage door from right rear quarter trim panel.
3.
Remove jack and tool bag.
4.

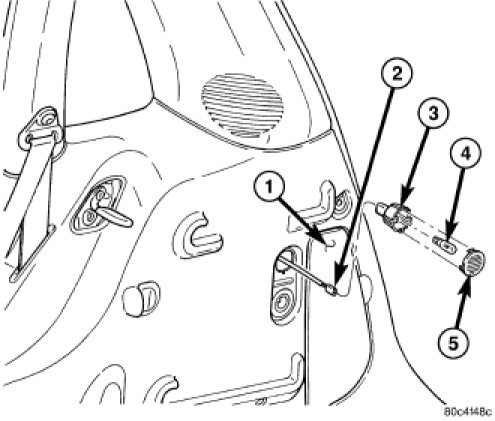

Place right hand on stem of
cargo lamp unit and pull downward until lens separates from the lamp unit.
5.
Pull
cargo lamp unit through jack storage door opening to access bulb.
6.
Disconnect wire connector from
cargo lamp unit.
7.
Pull bulb from unit socket.
