Installation
INSTALLATIONCAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result. 1.
Place fog lamp unit into position.
2.

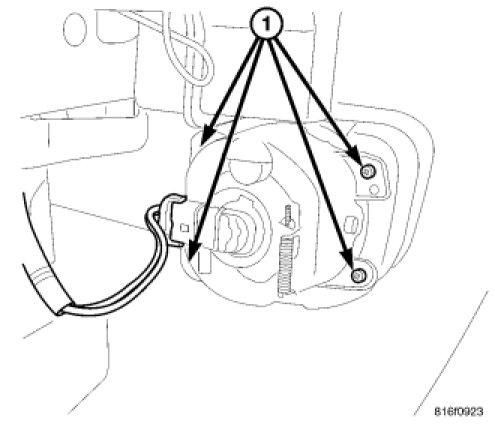

Install the four screws (1) attaching fog lamp unit to fascia.
3.

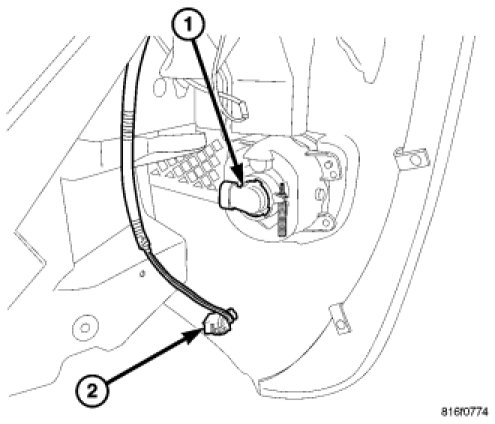

Connect wire connector (2) to the fog lamp unit (1).
4.
Install lower splash shield (2).
