Air Temperature Sensor ( Ambient / Intake ): Locations




Component ID: 322
Component : SENSOR-INTAKE AIR TEMPERATURE

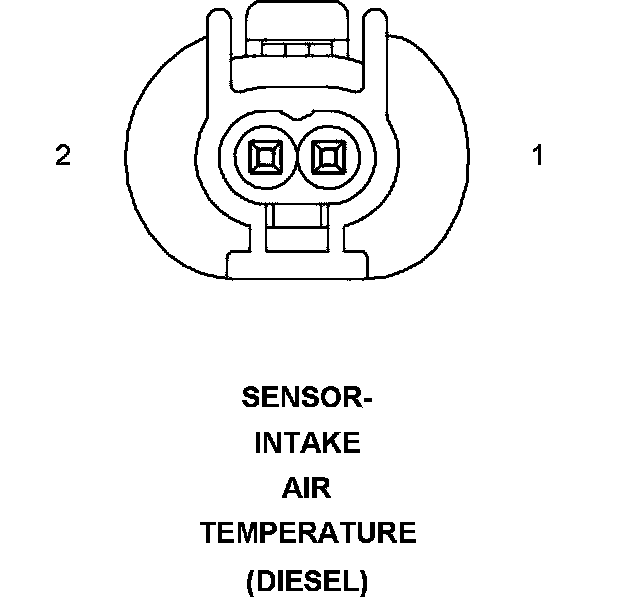

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 SENSOR GROUND K900 20BR/VT
2 IAT SIGNAL K21 20BR/VT

Component Location - 19




Component Location - 21




Component Location - 25




Component Location - 26




Component Location - 23

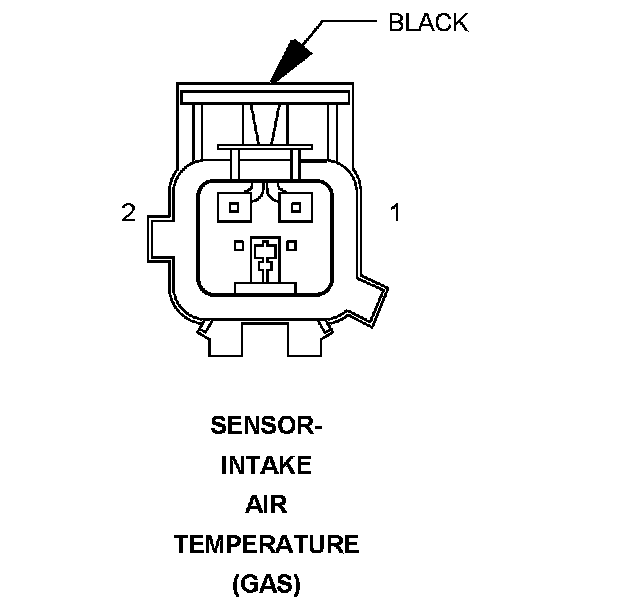

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 IAT SIGNAL K69 20BK/RD
Pin Description Circuit
1 IAT SIGNAL K21 20BK/RD
2 IAT GROUND K916 20RD
2 SENSOR GROUND K900 20BK/LB

Component Location - 19




Component Location - 21




Component Location - 25




Component Location - 26




Component Location - 23
