Installation
INSTALLATION 1.

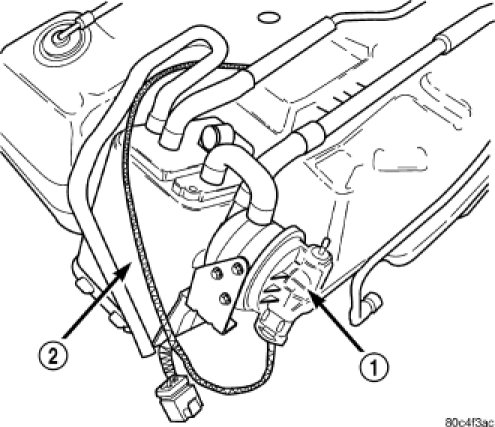

Install NVLD assembly to the bracket (1).
2.

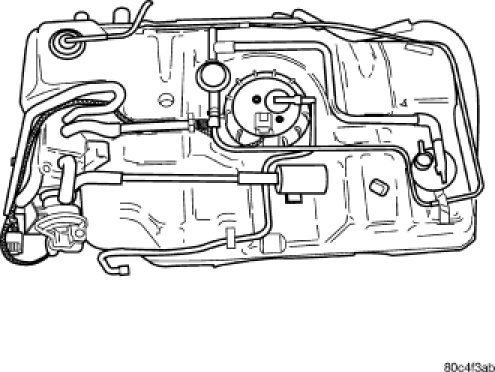

Install assembly to the
fuel tank.
3.
Install hoses and lines.
4.
Install the
fuel tank and EVAP system.
5.
Lower vehicle.
6.
Install the negative battery cable.
7.
Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
8.
Fill
fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
