Installation

2.0/2.4L




1. Install generator and loose assemble the bolt and nut.

2. Install and tension the generator belt.




3. Tighten the lower pivot bolt to 54 Nm (40 ft. lbs.).

4. Install axle shaft.

5. Install lower control arm to steering knuckle.

6. Install the lower ball joint nut and tighten.

7. Install the axle retaining nut and tighten.

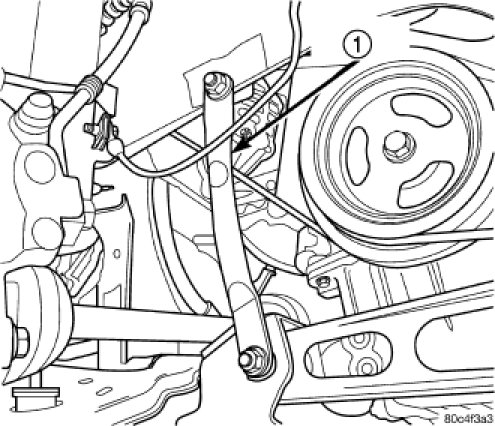

8. Install the pencil strut.




9. Install the B+ terminal nut and wire and tighten to 11.3 Nm (100 ins. lbs.).

10. Plug in the field circuit to the generator.




11. Install the accessory drive splash shield.

12. Install the right front wheel.

13. Lower vehicle.




14. Tighten the T-bolt locknut and tighten to 54 Nm (40 ft. lbs.)

15. Connect the negative battery cable.

16. Install the air cleaner lid and connect the inlet air temperature sensor and makeup hose.

17. Check the transmission fluid.
