Convertible

CONVERTIBLE




1. Remove door trim panel.

2. Remove door speaker.

3. Remove inside handle link

4. Remove water dam.

5. Remove inner door belt weatherstrip.

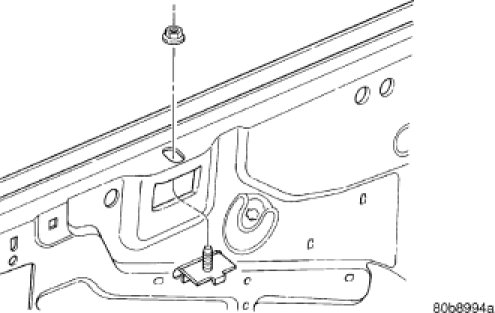

6. Loosen inner belt stabilizer.





7. Lower door glass to access glass attachment bolts through inner panel (third way down).

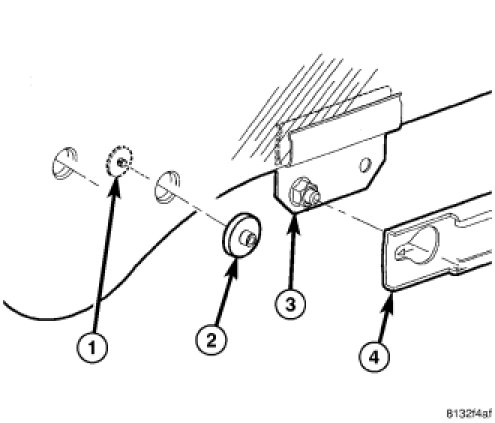

8. Remove bolts attaching regulator lift channel to door glass.

9. Remove bolts attaching rear rail assembly lift plate to door glass.

10. Remove rear rail assembly lift plate from door glass.

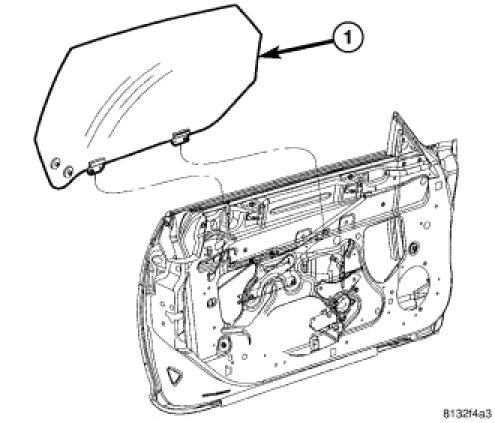

11. Lift door glass upward and out of opening at top of door.
