Removal

REMOVAL

1. Open hood.

2. Disconnect and isolate the battery negative cable.

3. Remove the rear wiper arm nut cap.

4. Remove wiper arm retaining nut.

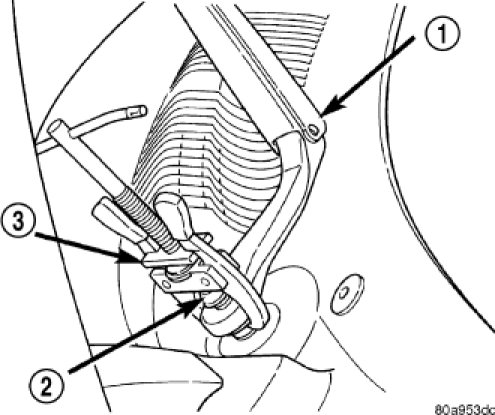

5. Use a battery terminal puller to remove the wiper arm from the wiper pivot.

6. Remove liftgate trim panel.

7. Disconnect harness connector.

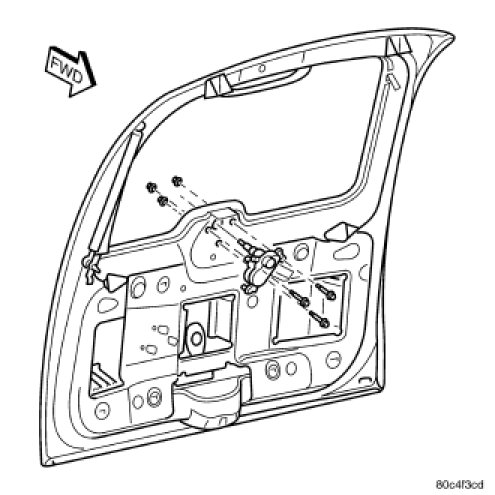

8. Remove three machine screws to the rear wiper motor and remove from vehicle.

CAUTION: Use extreme care when taking out motor. Damage to the grommet and or window can occur.
