Third Row Load Floor Panel
THIRD ROW LOAD FLOOR PANELREMOVAL
1. Open liftgate.

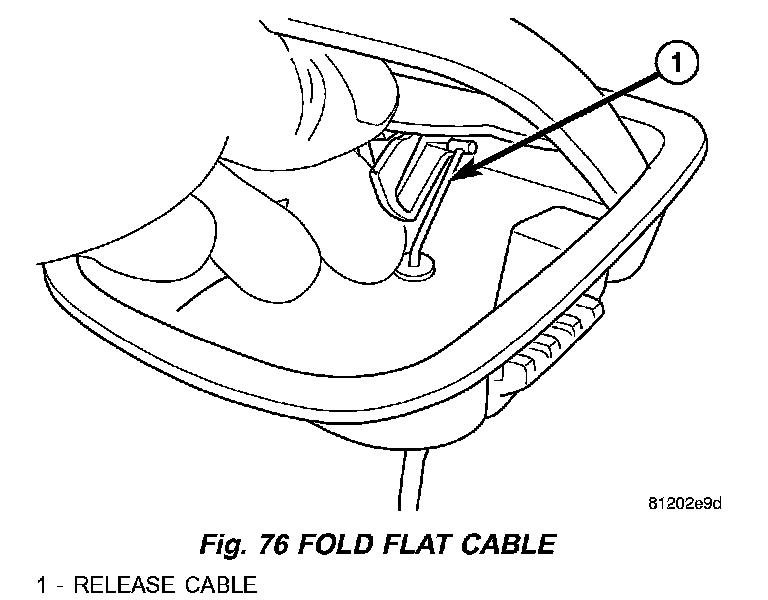

Fig. 76:
2. Using finger, disengage fold flat cable from handle (Fig. 76).

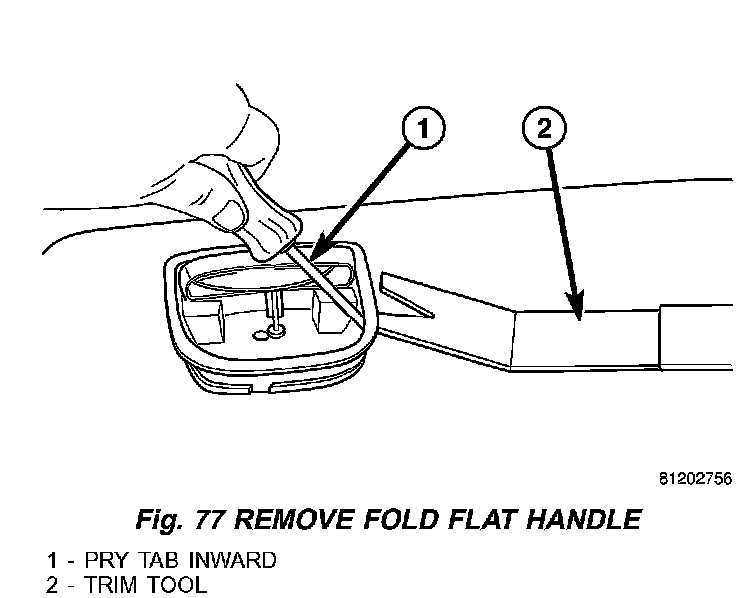

Fig. 77:
3. Release tab attaching fold flat handle to load floor panel (Fig. 77).
4. Disconnect fold flat cable from handle and remove handle from load floor panel.

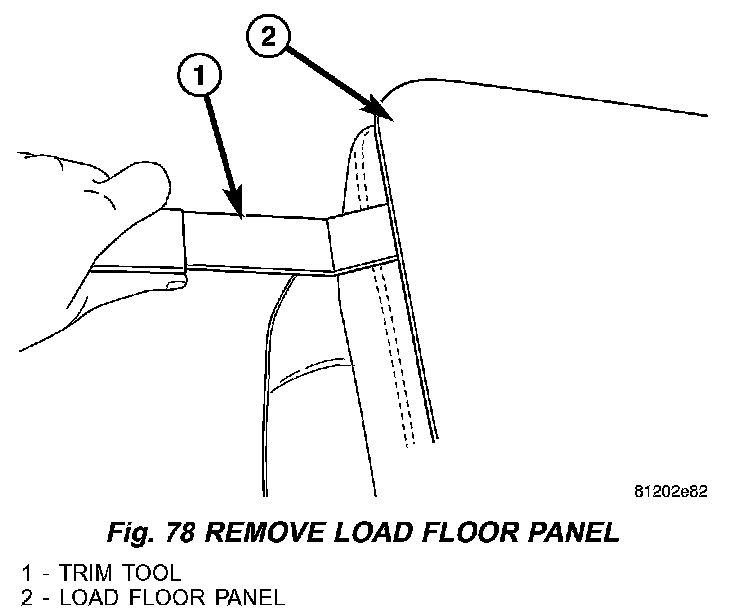

Fig. 78:
5. Remove load floor panel by using a trim tool and lifting up the edges to disengage the push pins (Fig. 78).

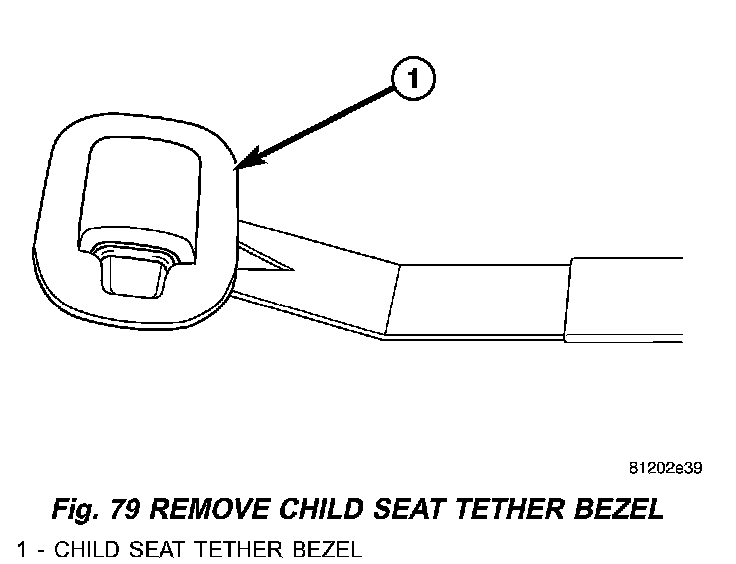

Fig. 79:
6. Remove load floor panel from seat back frame.
7. Remove child seat tether bezel, if equipped (Fig. 79).
INSTALLATION
1. Align load floor panel and push pins fasteners with holes in seat frame and press into position.
2. Connect fold flat cable to handle.
3. Place handle into position on load floor panel.
4. Press handle into full seated position.
5. Place third row child seat tether bezel into position.
6. Press bezel into the full seated position.
