Front






FRONT

NOTE: Inspect brake shoes before installation.

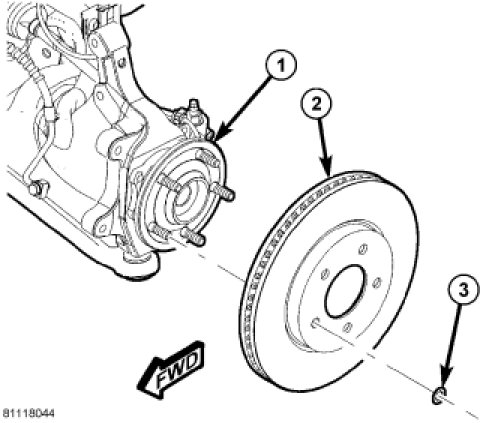

1. Clean rotor mounting face of hub and bearing (1) to remove any dirt or corrosion.
2. Install brake rotor (2) over studs on hub and bearing.

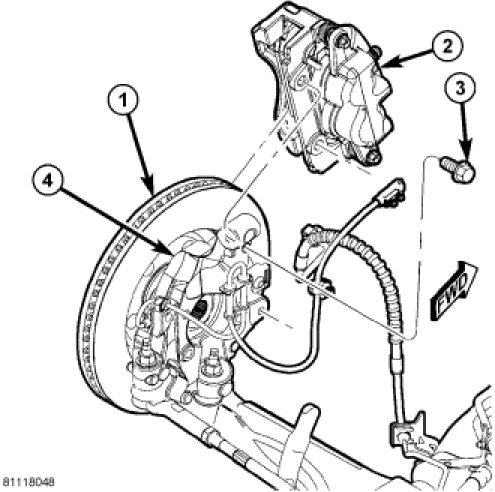

3. Install disc brake caliper and adapter assembly (2) over brake rotor (1).
4. Install mounting bolts (3) securing caliper adapter to knuckle (4). Tighten bolts to 169 Nm (125 ft. lbs.).




5. Install tire and wheel assembly (1). Install and tighten wheel mounting nuts (3) to 135 Nm (100 ft. lbs.).
6. Lower vehicle.
7. Pump brake pedal several times to ensure vehicle has a firm brake pedal before moving vehicle.
8. Check and adjust brake fluid level as necessary.
9. Road test vehicle and make several stops to wear off any foreign material on brakes and to seat brake shoes.
